ELECTRICAL for POLARIS SPORTSMAN 6X6 - A01CL50AA from 2001

ELECTRICAL

1

HARNESS-MAIN SPORTSAMN 6X6

2460854

9999999

Not Available

2

FAN CIRCUIT BREAKER KIT

2201795

9999999

Not Available

3

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

4

ROUTING CLIP

7670109

$4,19 Unit Price incl. VAT

5

ROSEBUD CLIP

4020149

$12,59 Unit Price incl. VAT

6

WASHER

7571602

$9,44 Unit Price incl. VAT

7

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

8

TUBING CONVOLUTED 3/4

836001115

Not Available

9

HEATSINK RECT.

5131036

9999999

Not Available

10

RECTIFIER FULL WAVE

4060173

2203636

$325,49 Unit Price incl. VAT

11

SCREW(10)

7512018

$6,29 Unit Price incl. VAT

12

SCREW

7512024

$9,44 Unit Price incl. VAT

13

BRACKET-CDI

5241416

9999999

Not Available

14

PAD

5810455

$6,29 Unit Price incl. VAT

15

BOLT

7512007

$7,34 Unit Price incl. VAT

16

CABLE; SOL/STARTER

4010093

$89,24 Unit Price incl. VAT

17

CABLE BATT/SOLENOID RED

4010094

9999999

Not Available

18

BATTERY; 195 COLD CRANK AMPS

4140006

$136,49 Unit Price incl. VAT

19

BATTERY PAD

5810290

5810290-CO

$13,64 Unit Price incl. VAT

20

VENT TUBE

5432077

9999999

Not Available

21

CLIP

7670102

$4,19 Unit Price incl. VAT

22

STRAP BATTERY HOLDDOWN

5410424

5418182

$9,44 Unit Price incl. VAT

23

BATTERY STRAP HOOK

7010032

9999999

Not Available

24

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

25

KIT-BATTERY BOLT (SHORT)

2200361

9999999

Not Available

26

BATTERY COVER

5431769

$29,39 Unit Price incl. VAT

27

SCREW

7512027

$2,09 Unit Price incl. VAT

28

SCREW

7517386

$2,09 Unit Price incl. VAT

29

SWITCH BUTTON

4010311

$115,49 Unit Price incl. VAT

30

HORN

4010310

9999999

Not Available

31

SCREW

7512057

9999999

Not Available

32

PAD

5810317

9999999

Not Available

33

HARNESS-ADAPTER HORN

2460837

9999999

Not Available

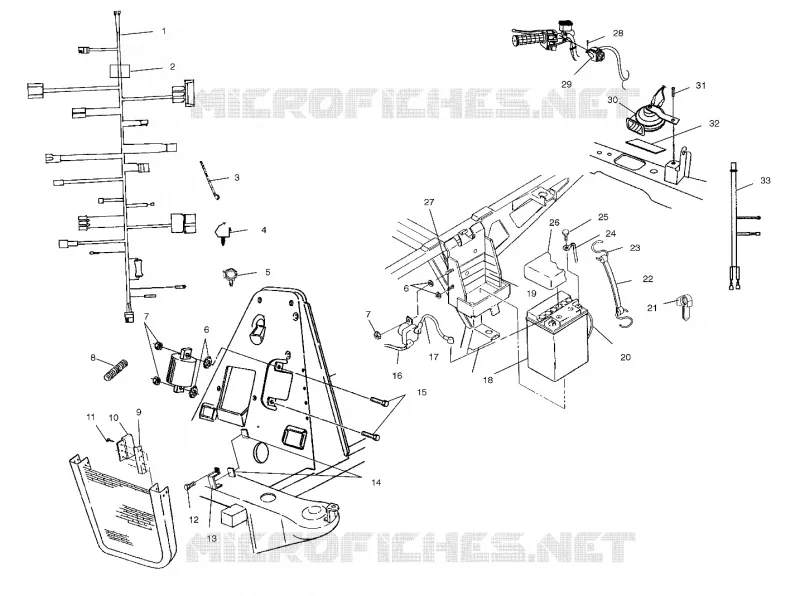

Find the detailed ELECTRICAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
