1
Engine displacement
550
2
Year
2003
3
Trim
550 SUPERSPORT EDGE X F/O
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
SHIFT (REVERSE MODELS)
by
CRANKCASE
ENGINE MOUNTING
1
SCR 7/16-20X8.250HXCP
7517776
7519287
$52,49 Unit Price incl. VAT
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
CHOKE CABLE
7080290
$194,24 Unit Price incl. VAT
7
SPARK PLUG(4)
3070163
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC55PM-010 (See Footnote)
3085618
Not Available
9
RECOIL HANDLE; GLOSS BLACK
5431499070
Not Available
10
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
11
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
12
STRAP-ENGINE MOUNTLH
5245466
9999999
Not Available
13
STRAP-ENGINE MOUNTRH
5246193
9999999
Not Available
14
MOUNT-ENGINE 3/8-16
3021220
9999999
Not Available
15
SPACER-ENGINE MOUNT .44
5245117
9999999
Not Available
16
SCREW
7517399
9999999
Not Available
17
ENGINE MOUNT
3021206
9999999
Not Available
18
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
19
BRKT-ENGINE MOUNT;RH;FORMED
5245044
9999999
Not Available
20
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
21
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
22
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
23
WELD-ENG MOUNT BRKT;LH
1013397
9999999
Not Available
24
SPACER-ENGINE .38
5245020
9999999
Not Available
25
THROTTLE CABLE
7080888
9999999
Not Available
26
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
27
TUBING CONVOLUTED
8360052305
Not Available
28
FUEL LINE; 600 CM
8450040600
Not Available
29
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
30
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
31
LINE; FUEL;600CM;SVC
8350018600
Not Available
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
FUEL VALVE; PLASTIC; INCLINE 1/4 IN
7052248
$52,49 Unit Price incl. VAT

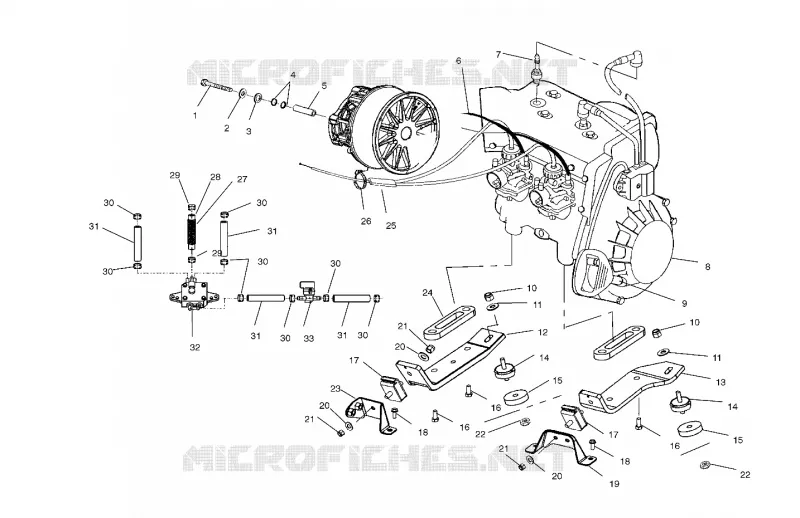

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
