Engine displacement
550
2
Year
2010
3
Trim
SPORTSMAN X2 550 - A10TN55AL/AX
4
Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SEAT, OPERATOR
by
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
1
2
3
3
4
5
5
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
18
1
2-EAR RESERVOIR BRAKE ASSEMBLY; TALL
1911224
$68,24 Unit Price incl. VAT
2
DIAPHRAGM-RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
3
RING-RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
4
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
5
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
6
HOSE-RESERVOIR BRAKE 826MM
1911267826
Not Available
7
ASM-MASTER CYLDIRMC3/4 90
1911347
9999999
Not Available
8
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
9
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
10
BRKT-BRAKE MOUNT
5251561
$89,24 Unit Price incl. VAT
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
12
HEX FLANGE BOLT; 8 MM X 1.25 MM X 50 MM
7518677
$7,34 Unit Price incl. VAT
13
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
14
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
15
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
16
WELD-LEVER BRAKE BLK
1911207067
Not Available
17
BOLT-M10X1.25X50 HXFLG-OLIVE D
7518559
$10,49 Unit Price incl. VAT
18
SPACER-12.7X10.2X30.5MM
5135720
$12,59 Unit Price incl. VAT

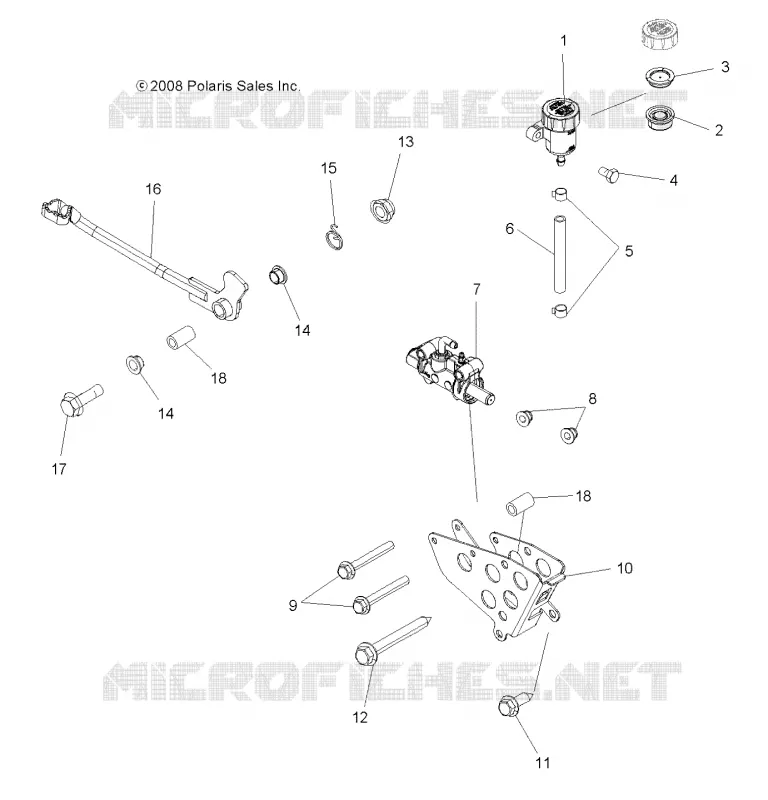

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
