CHASSIS, MAIN FRAME AND SKID PLATES for POLARIS GENERAL 1000 DELUXE EPS EU from 2022

DRIVE TRAIN, CLUTCH COVER AND DUCTING

CHASSIS, MAIN FRAME AND SKID PLATES

1

WELD-MAIN FRAME;EU;BLK

1025328458

Not Available

2

WELD-FRAME FRONT 2 PC ABS BLK

1024643458

Not Available

3

PLATE-SKID REAR BLK

5456433070

Not Available

4

SKID PLATE

5452060070

Not Available

5

SUSPENSION MOUNT BRACKET; FRONT; MT BLK

5259449458

Not Available

6

HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM

7518474

$9,44 Unit Price incl. VAT

7

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

8

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

9

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519285

$4,19 Unit Price incl. VAT

10

HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM

7519332

$10,49 Unit Price incl. VAT

11

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

12

SKID PLATE WASHER

7556065

$8,39 Unit Price incl. VAT

13

WELD-SEAT BASE;TR;E-COAT

1023428329

Not Available

14

TUBE ASSEMBLY; TOP FRAME; BLACK

1022891329

Not Available

15

SCREW

7517281

$13,64 Unit Price incl. VAT

16

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

17

TOW HOOK WELD; MATTE BLACK

1020619458

Not Available

18

HEX FLANGE SCREW; 10 MM X 1.5 MM X 30 MM

7519764

$4,19 Unit Price incl. VAT

19

PLUNGER-LATCH SEAT

5632848

$25,19 Unit Price incl. VAT

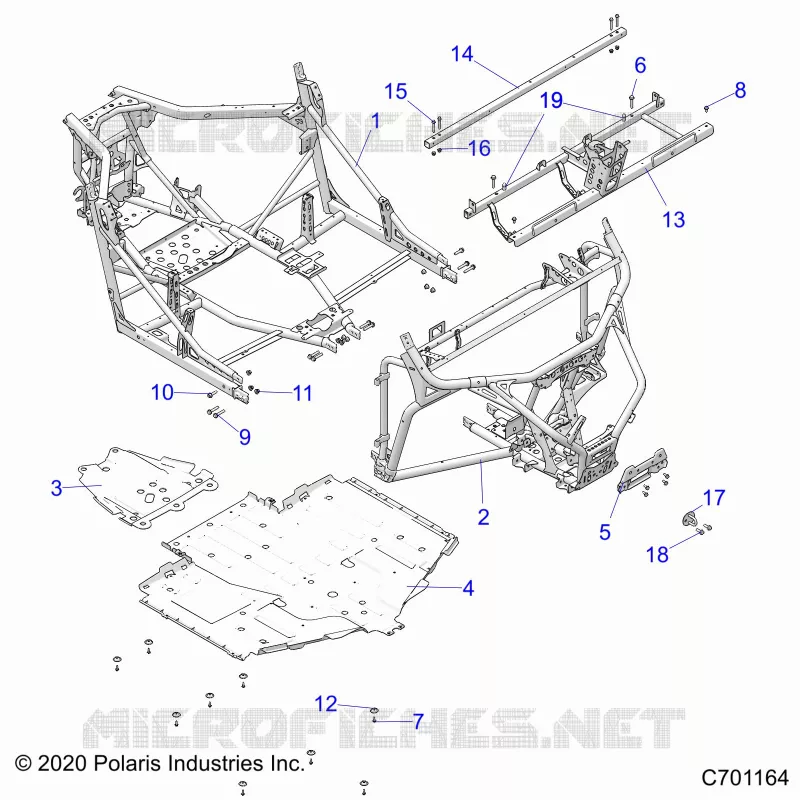

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
