Engine displacement
500
2
Year
2004
3
Trim
A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG
4
Parts Catalog
FRONT RACK AND BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
DECALS
FRONT RACK AND BUMPER MOUNTING
1
1
2
3
4
4
5
5
5
5
5
6
7
7
8
9
9
9
10
11
12
13
14
15
15
15
15
16
17
18
19
20
21
22
22
22
23
23
24
24
25
26
27
27
28
28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
4
5
5
5
5
5
6
6
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
19
19
19
19
19
20
20
21
21
21
21
22
22
23
24
24
25
26
26
26
26
27
27
1
FRONT RACK EXTLOWSILVER
1040526385
Not Available
1
RACK EXTFRLOWBLK
1040526067
Not Available
2
SCREW
7517685
$3,14 Unit Price incl. VAT
3
BARBED PLUG; .625
7081085
$13,64 Unit Price incl. VAT
4
FRONT RACK; GLOSS BLACK
5435240070
Not Available
4
RACK-FRONT;BLK
5434697070
Not Available
5
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
6
SCREW
7512307
$7,34 Unit Price incl. VAT
7
H/L ASM;27W;BOTT.MT.
2431017
9999999
Not Available
7
BULB H/L 27W.HOBBS
4030059
9999999
Not Available
8
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
9
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
10
BUMPER ASSEMBLY; FRONT; GLOSS BLACK
2632758070
Not Available
11
BOLT
7515306
9999999
Not Available
12
PANEL-BUMPER FRONT BLK
5434699070
Not Available
13
SCREW
7512094
$3,14 Unit Price incl. VAT
14
WELD-GUARD BRUSH BLK
1013366067
Not Available
15
RADIATOR SHIELD; SIDE; LEFT
5434314
9999999
Not Available
15
RADIATOR SHIELD; RIGHT
5434315
9999999
Not Available
16
GROMMET; RUBBER
5410774
5412504
$7,34 Unit Price incl. VAT
17
RADIATOR COVER; MESH
5435046
9999999
Not Available
18
GRILL-BRUSH GUARD;GEN VI;BLK
5247137067
Not Available
19
SCREW(10)
7522021
9999999
Not Available
20
NUT
7670094
$10,49 Unit Price incl. VAT
21
SCREW(10)
7512097
9999999
Not Available
22
SCREW
7515399
9999999
Not Available
23
BOLT
7512329
$7,34 Unit Price incl. VAT
24
DECAL-AMBERREFLECTORRH
7171475
9999999
Not Available
24
DECAL-AMBER REFLECTOR LH
7171474
9999999
Not Available
25
SUPPORT RACK WELD; FRONT; GS BLK
1014020067
Not Available
26
PLUG; FRAME
5810467
9999999
Not Available
27
WELD-SUPPORT RACKFRONTLHBLK
1014261067
Not Available
27
SUPPORT RACK WELD FRONT RIGHT GS BLK
1014262067
Not Available
28
BOLT
7512232
$2,09 Unit Price incl. VAT

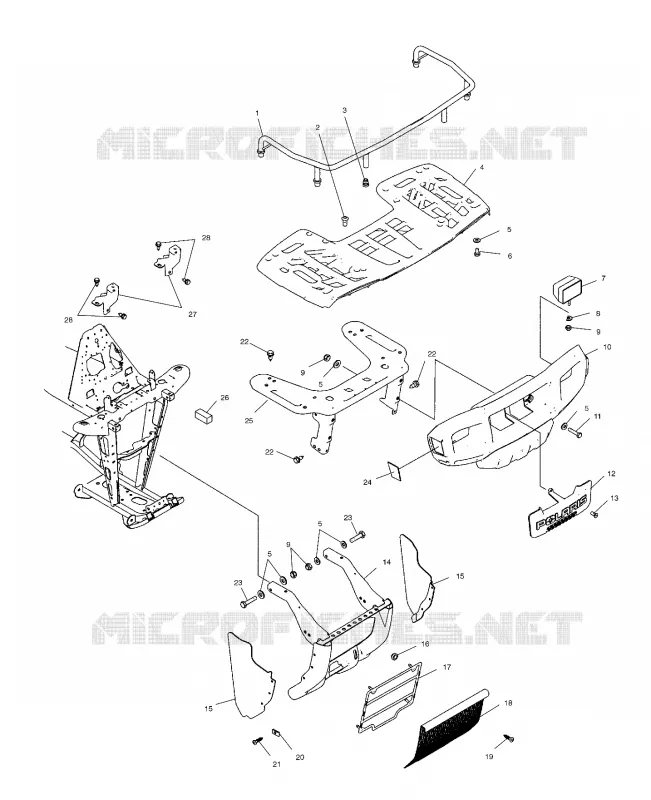

Find the detailed FRONT RACK AND BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
