DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT for POLARIS 800 IQ from 2008

DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT

1

SCREW(10)

7517581

$3,14 Unit Price incl. VAT

2

WASHER FLAT

7555701

$7,34 Unit Price incl. VAT

3

WASHER FLAT(10)

7555734

$1,56 Unit Price incl. VAT

4

WASHER

7555957

$9,44 Unit Price incl. VAT

5

INPUT SHAFT SPACER; .875

5135611

$15,74 Unit Price incl. VAT

6

DRIVE BELT

3211115

$269,31 Unit Price incl. VAT

7

WASHER

7555917

$4,19 Unit Price incl. VAT

7

WASHER

7555864

$4,19 Unit Price incl. VAT

7

BUSHING

7556509

$3,14 Unit Price incl. VAT

8

CARRIAGE BOLT

7512377

$9,44 Unit Price incl. VAT

9

FLANGETTE-.100 OFFSET

5247680

9999999

Not Available

10

BEARING; 1 MM X 52 MM X 15 MM

3514617

$54,59 Unit Price incl. VAT

11

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

12

JACKSHAFT ASM;15/21 SPL W/BRG

1332336

9999999

Not Available

13

RING RETAINING

7710422

$7,34 Unit Price incl. VAT

14

SEAL SLEEVE; 45 DEGREE CHAMFER

5135231

9999999

Not Available

15

O-RING

5410613

$3,66 Unit Price incl. VAT

16

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

17

BOLT-CARR 3/8-16X1.00 GR5-Y

7518494

$6,29 Unit Price incl. VAT

18

BOLT-CARRIAGE 3/8-16X1.75-Y

7518268

9999999

Not Available

19

FLANGETTE

5222751

9999999

Not Available

20

BEARING-25MM SPH OD LUBE

3514448

3514617

$54,59 Unit Price incl. VAT

21

WHEEL-PICKUP SPEEDO 9 TOOTH

5240013

5136619

$62,99 Unit Price incl. VAT

22

BOLT-CARR 5/16-18X5/8 GR5-Y

7518049

$7,34 Unit Price incl. VAT

23

PALNUT

7547030

$9,44 Unit Price incl. VAT

24

DRIVE PICKUP HOUSING

5246960

$47,24 Unit Price incl. VAT

25

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

26

SPEED PICKUP SENSOR

2410376

9999999

Not Available

27

BOLT

7512232

$2,09 Unit Price incl. VAT

28

JACKSHAFT GASKET; BLACK

5811095

9999999

Not Available

29

SCREW

7516733

$11,54 Unit Price incl. VAT

30

FLANGETTE ASSEMBLY WITH SCREWS

1014299

$68,24 Unit Price incl. VAT

31

ASM-DRVSHAFT TUBULAR 9T REINF

1590411

9999999

Not Available

32

CABLE CLAMP

7080367

$4,19 Unit Price incl. VAT

33

RETAINER- J CLP (10)

7080963

9999999

Not Available

34

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

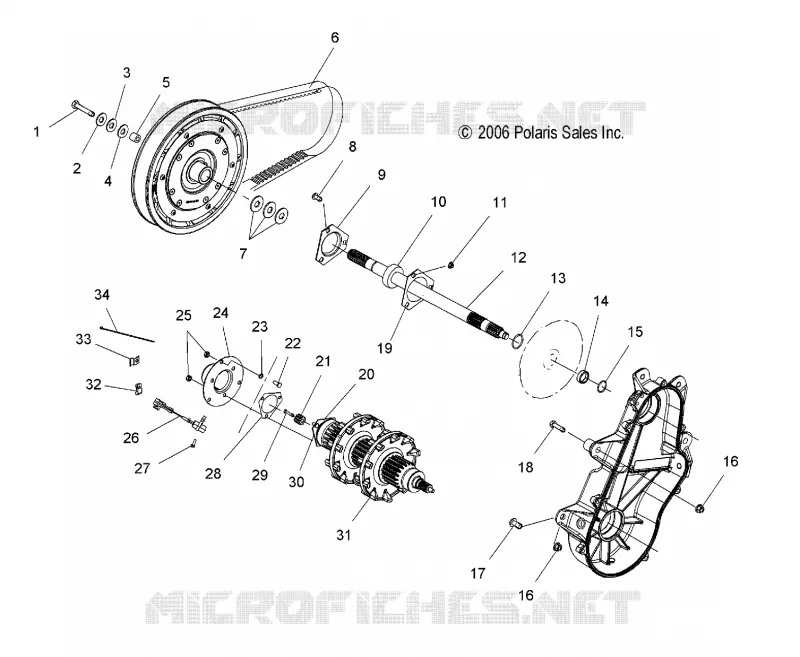

Find the detailed DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
