1
Engine displacement
650
2
Year
2022
3
Trim
650 RMK KHAOS MATRYX SLASH 146
4
Parts Catalog
ELECTRICAL, SWITCHES, SENSORS AND COMPONENTS
5
Parts Diagram
Parts Catalog
ELECTRICAL, JUMPER WIRES
by
ENGINE, COOLING SYSTEM
ELECTRICAL, SWITCHES, SENSORS AND COMPONENTS
1
2
3
4
5
6
7
26
26
9
10
11
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
HEATER-GRIP LO/HI ALUM
2416055
$89,24 Unit Price incl. VAT
2
HANDWARMER SWITCH; SPDT
4011319
$83,99 Unit Price incl. VAT
3
SWITCH-HEADLIGHT HI ONLY
4080556
$125,99 Unit Price incl. VAT
4
SWITCH-THROTTLE
4019109
4080777
Not Available
5
E/R MOMENTARY SWITCH
4017591
$89,24 Unit Price incl. VAT
6
HEX FLANGE HEAD SCREW; 6 MM X 12 MM
7517886
$3,14 Unit Price incl. VAT
7
UNPROGRAMMED PBR ICE REGULATOR
4017985
$976,49 Unit Price incl. VAT
8
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
9
SEALED STARTER SOLENOID
4014655
$83,99 Unit Price incl. VAT
10
ASM-THERMISTER/JUMPER
2415756
$123,36 Unit Price incl. VAT
11
ASM-SWITCH AUXSHUTOFF PROT MNT
2010496
2010516
$165,15 Unit Price incl. VAT
11
SWITCH-AUX SHUT-OFF DC-SDI
4019114
4080779
$135,23 Unit Price incl. VAT
12
MNT-AUX SHUT-OFF LOWER
5439575
$47,24 Unit Price incl. VAT
13
SCREW
7512076
$2,09 Unit Price incl. VAT
14
ECU-BASE KOK 840T MY22
4019295
$1 454,24 Unit Price incl. VAT
14
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
14
SCREW
7516823
$5,76 Unit Price incl. VAT
15
DETONATION BOSCH SENSOR
2410369
$152,24 Unit Price incl. VAT
16
SCR-M8X1.25X30 HX/FL-YD
7517262
$10,49 Unit Price incl. VAT
17
EXHAUST GAS TEMPERATURE 800 CH
4016024
4080929
$414,74 Unit Price incl. VAT
18
3 POSITION KEY SWITCH
4012165
4083589
$202,64 Unit Price incl. VAT
19
KEY SWITCH KEY COVER
5433534
5465307
$26,24 Unit Price incl. VAT
20
BLANK KEY; 20/21/67/68
4010278
4083605
$27,29 Unit Price incl. VAT
21
IGNITION SWITCH NUT
5433733
9999999
Not Available
22
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
23
SCREW
7512098
$3,14 Unit Price incl. VAT
24
SPEED PICKUP SENSOR
2414244
4080773
$173,24 Unit Price incl. VAT
25
SCR-TXPH-M6X1.0X25 8.8 ZOD
7519993
$2,09 Unit Price incl. VAT
26
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
27
LANYARD-TETHER
4019319
$68,24 Unit Price incl. VAT
28
NUT-TETHER
5457298
$9,44 Unit Price incl. VAT
29
BASE-TETHER
4019318
$178,49 Unit Price incl. VAT

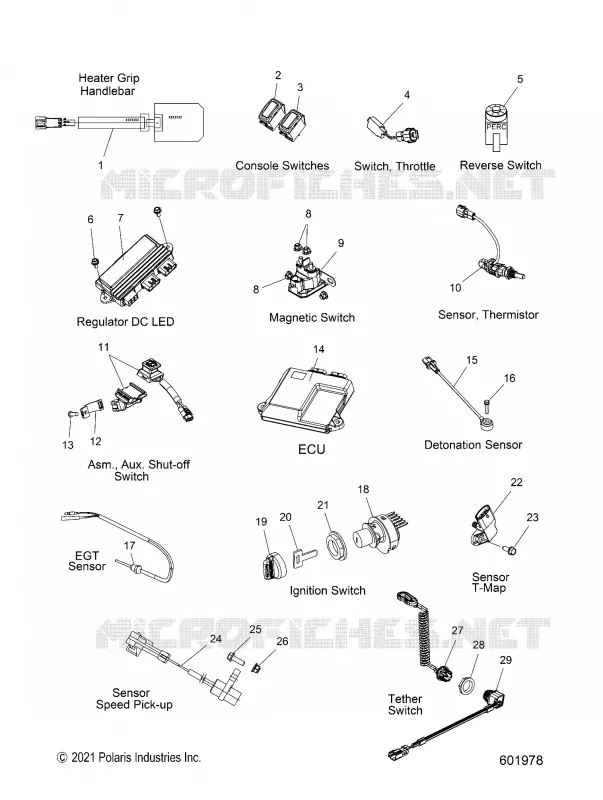

Find the detailed ELECTRICAL, SWITCHES, SENSORS AND COMPONENTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
