REAR WHEEL DRIVE ASSEMBLY (4918541854023A) for POLARIS TRAIL BOSS 350L 4X4 - W908139 from 1990

FRONT WHEEL ASSEMBLY (4918541854021A)

SWING ARM WELDMENT AND REAR SHOCK ASSEMBLY (4918541854025A)

REAR WHEEL DRIVE ASSEMBLY (4918541854023A)

1

WASHER

7555764

9999999

Not Available

2

JAM NUT

5020468

9999999

Not Available

3

SUBSTITUTED BY 2200341

5130767

$173,24 Unit Price incl. VAT

4

TIRE R(25X12-10) Substituted by 5411408

5410566

Not Available

5

NUT

7542714

9999999

Not Available

6

WASHER

7555745

9999999

Not Available

7

CASTLE NUT

7543005

9999999

Not Available

8

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

9

COVER DUST HUB

5410404

5413427

$52,49 Unit Price incl. VAT

10

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

11

CONNECTOR LINK

3225024

9999999

Not Available

12

CHAIN; DRIVE; 84P

3224047

3221193-084

$272,99 Unit Price incl. VAT

13

BOLT

7515488

9999999

Not Available

14

SPROCKET; 34T

3222050

9999999

Not Available

15

HUB SPROCKET

5630320

9999999

Not Available

16

O RING 1 5/16(10)

5410415

9999999

Not Available

17

AXLE SEAL; REAR

3610013

9999999

Not Available

18

BALL BEARING

3515501

$47,24 Unit Price incl. VAT

19

TUBE BEARING SPACER

5010204

9999999

Not Available

20

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

21

HOUSING AXLE

5130663

9999999

Not Available

22

SPACER BEARING

5010206

9999999

Not Available

23

SNAP RING

7710405

9999999

Not Available

24

AXLE; REAR

5020504

9999999

Not Available

25

RIM REAR WELD. (Primed)

1520114

Not Available

26

BOLT

7512673

$5,76 Unit Price incl. VAT

27

CONE WASHER

7555796

$14,69 Unit Price incl. VAT

27

SPROCKET HUB ASM.

1520170

9999999

Not Available

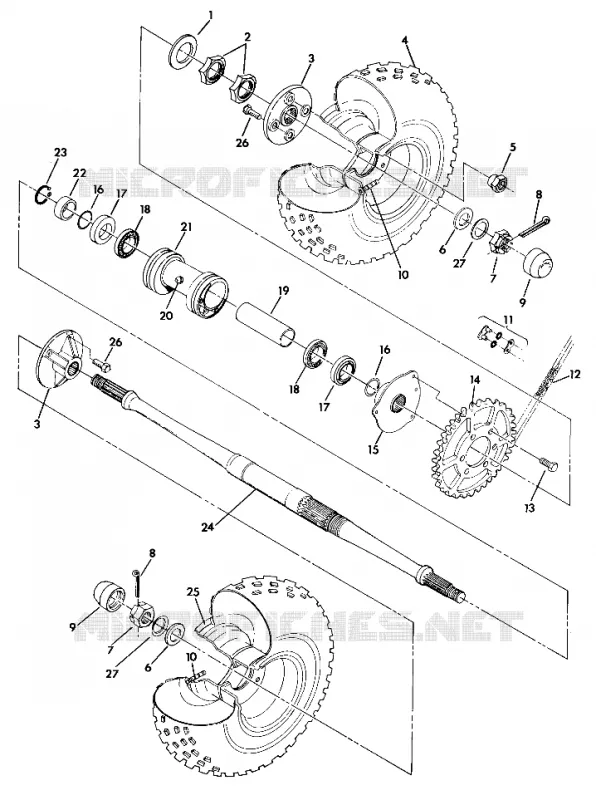

Find the detailed REAR WHEEL DRIVE ASSEMBLY (4918541854023A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
