Engine displacement
500
2
Year
2007
3
Trim
RANGER 500 2X4/4X4 - R07RB50AA/RH50AA
4
Parts Catalog
FUEL SYSTEM
5
Parts Diagram
Parts Catalog
CABIN
by
REAR GEARCASE (BUILT BEFORE 1/15/07)
FUEL SYSTEM
1
FITTING 1/4 90 DEX
7052259
9999999
Not Available
2
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
3
FUEL HOSE-1/4" DP SAE J30R9
8450117
8450117-250
$99,74 Unit Price incl. VAT
4
FLANGED GROMMET; .36 X .56 X 1.06
7052362
$13,64 Unit Price incl. VAT
5
FUEL LINE-ESTER
8350019600
Not Available
6
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
7
FUEL PICKUP WITH FILTER; 105 MICRON
7052301
$26,24 Unit Price incl. VAT
8
GAS CAP W/ GAUGE
1240119
$83,99 Unit Price incl. VAT
9
ROUTING CLIP
7670109
$4,19 Unit Price incl. VAT
10
TANK-FUEL RANGER
5436398
9999999
Not Available
10
TANK-FUEL
5433861
9999999
Not Available
11
SCREW
7515399
9999999
Not Available
12
FLOOR SUPPORT WELD RIGHT GS BLK
1015378067
Not Available
13
BRKT-FUEL PUMP MOUNT
5249629
9999999
Not Available
14
FOIL-HEAT SHIELD
5812694
9999999
Not Available
15
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
16
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
17
SCREW
7517386
$2,09 Unit Price incl. VAT
18
CONDUIT-FLEX SLT 5/8 HITEMP-75
836005475
Not Available
19
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
20
FUEL PUMP
4011545
$600,06 Unit Price incl. VAT
21
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

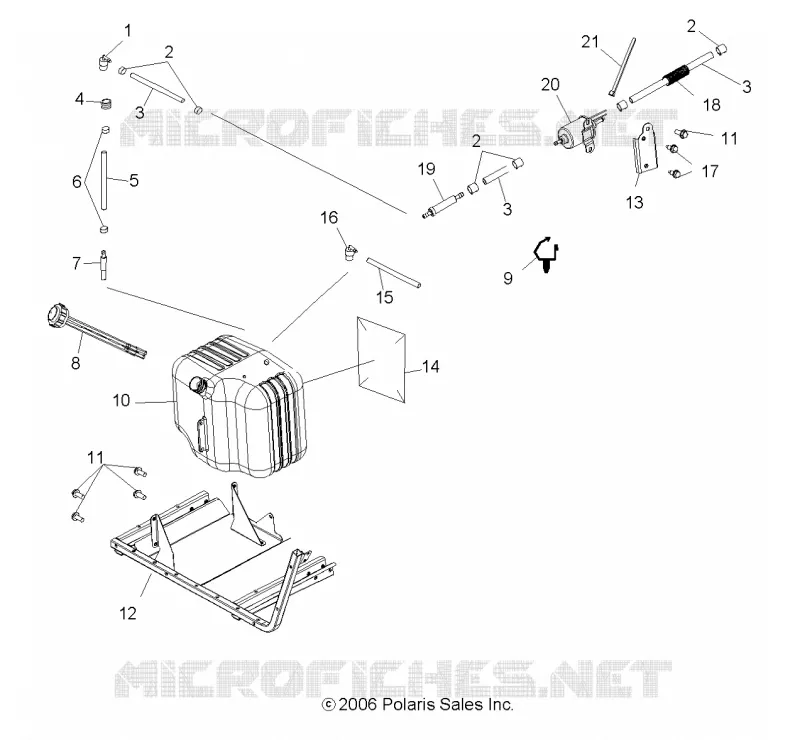

Find the detailed FUEL SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
