FUEL SYSTEM, FUEL TANK EVAP SYSTEM. for POLARIS SPORTSMAN 570 PREMIUM from 2024

FUEL SYSTEM, FUEL TANK ASM.

REFERENCE, OWNERS MANUAL

FUEL SYSTEM, FUEL TANK EVAP SYSTEM.

1

ACTIVATED CARBON CANISTER; BFL

2521893

$173,24 Unit Price incl. VAT

2

BRKT-MNT CANISTER;BLK

5457122070

Not Available

3

BOLT

7519650

$7,34 Unit Price incl. VAT

4

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

5

PURGE VALVE

2521964

$120,74 Unit Price incl. VAT

6

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

7

CANISTER VENT FILTER

2521750

$94,49 Unit Price incl. VAT

8

BRKT-MNT PRG VLV FILTER E COAT

5268313329

Not Available

9

COVER PRG VLV FILTER E COAT

5268631329

Not Available

10

HOSE-AIR FRESH FUEL VENT

5417156

$136,49 Unit Price incl. VAT

11

BOLT-5/16-18X1-3/4 HXFLNG GR5

7518341

$9,44 Unit Price incl. VAT

12

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

13

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

14

U-TYPE NUT; M6-1.0

7547674

$2,09 Unit Price incl. VAT

15

FUEL LINE-10 CENTIMETERS

845004010

Not Available

16

ASM-LINE TANK TO CANISTER 1UP

2522188

$262,49 Unit Price incl. VAT

17

HOSE CLAMP

7080236

$3,14 Unit Price incl. VAT

18

PADUIT STRAP; DOUBLE HOOP

7081033

$8,39 Unit Price incl. VAT

19

CLAMP-HOSE 17/32 GREEN

7081432

$7,34 Unit Price incl. VAT

20

ASM-LINE CANISTER TO PURGE

2522190

$125,99 Unit Price incl. VAT

21

ASM-LINE PURGE TO TB

2522191

$220,49 Unit Price incl. VAT

22

T-CLIP T15

7081689

$13,64 Unit Price incl. VAT

23

CABLE TIE STRAP WITH EDGE CLIP

7081808

$10,49 Unit Price incl. VAT

24

SCREW

7512025

$9,44 Unit Price incl. VAT

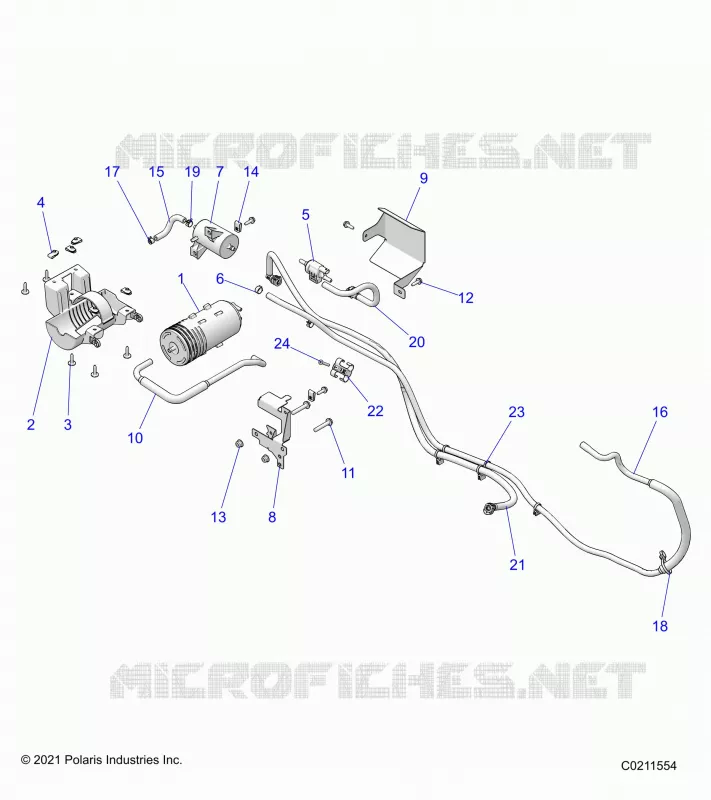

Find the detailed FUEL SYSTEM, FUEL TANK EVAP SYSTEM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
