FUEL SYSTEM, FUEL TANK AND HOSES for POLARIS 500 WIDETRAK LX from 2012

FUEL SYSTEM, FUEL TANK AND HOSES

1

GAS CAP GASKET

5810513

$15,74 Unit Price incl. VAT

1

GAS CAP WITH GAUGE

2511246

$83,99 Unit Price incl. VAT

2

TANK FUEL ASM.

2520180

9999999

Not Available

3

FUEL PICKUP;W/FILTER

7052243

7052301

$26,24 Unit Price incl. VAT

4

COMPRESSION RING

7080402

$3,14 Unit Price incl. VAT

5

FUEL LINE-ESTER

8350019600

Not Available

6

FUEL LINE; 3 MM X 7 MM

8450061600

Not Available

7

FITTING 90 DEG 1/8

7052095

$9,44 Unit Price incl. VAT

8

CABLE TIE-RELEASABLE;5 1/2

7080804

$6,29 Unit Price incl. VAT

9

FITTING OUTLET

7052023

$36,74 Unit Price incl. VAT

10

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

11

TUBING CONVOLUTED

8360052305

Not Available

12

FUEL HOSE; 250 CM

8450117250

Not Available

13

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

14

FUEL LINE; 600 CM

8450040600

Not Available

15

FUEL VALVE; PLASTIC; INCLINE 1/4 IN

7052248

$52,49 Unit Price incl. VAT

16

SPRING; TANK

7042020

9999999

Not Available

17

WELL NUT

7541923

$10,49 Unit Price incl. VAT

18

WASHER

7552604

$3,14 Unit Price incl. VAT

19

SCREW(10)

7512222

9999999

Not Available

20

BATTERY PAD

5810290

5810290-CO

$13,64 Unit Price incl. VAT

21

WASHER; FLAT

7555843

7558302

$3,14 Unit Price incl. VAT

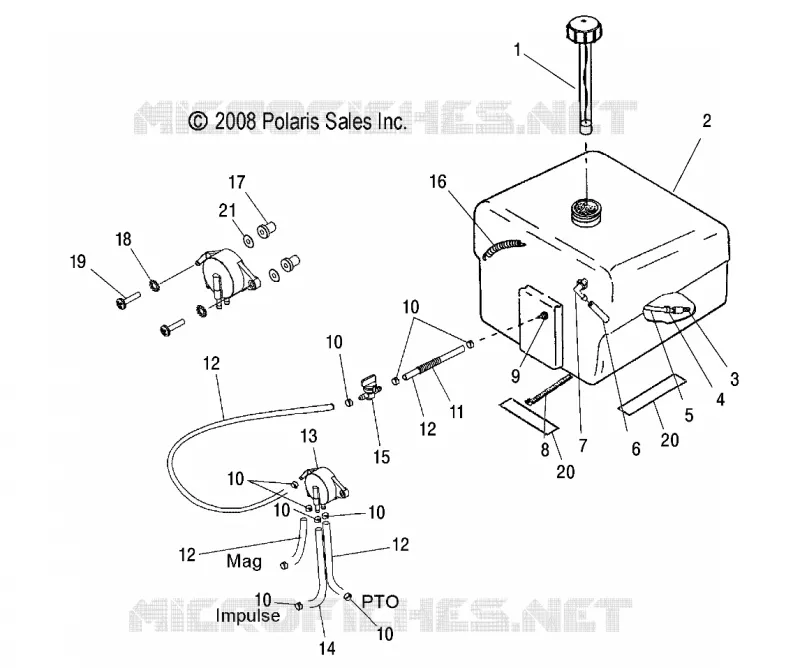

Find the detailed FUEL SYSTEM, FUEL TANK AND HOSES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
