REAR SUSPENSION for POLARIS 800 SWITCHBACK ASSAULT from 2013

REAR SUSPENSION

1

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

2

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

3

SCR-3/8-24X2.00 HX/CP-GR8-P80Y

7517857

$10,49 Unit Price incl. VAT

4

WASHER

7556042

7555806

$1,56 Unit Price incl. VAT

5

NUT-3/8-24 HEX LOC;GR8

7547344

$1,56 Unit Price incl. VAT

6

WASHER .385 X 88 X .075

7556242

$4,19 Unit Price incl. VAT

7

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

8

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

9

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

10

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

11

BUSHING

7555918

$3,14 Unit Price incl. VAT

12

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

12

WHEEL SPOKE ASSEMBLY; 7.25

1590459

$82,94 Unit Price incl. VAT

12

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

13

IDLER SPACER; LONG

5333285

$20,99 Unit Price incl. VAT

14

ILDER SHAFT

5020744

9999999

Not Available

15

WELD-REAR PIVOT ARM;BLK

1541832067

Not Available

16

TUBE; .397 X .562 X 8.515; NITRIDE

5334162

9999999

Not Available

17

SCR-3/8-24X9.875 HX/LP GR8-Y

7517921

$41,99 Unit Price incl. VAT

18

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

19

PIVOT ARM SHAFT; 2.375; GS BLK

1542122067

Not Available

20

SHAFT-C BORE;.688X8.665;2045

5134078

$62,99 Unit Price incl. VAT

21

WASHER

7555832

$4,19 Unit Price incl. VAT

22

SHOCK CENTERING SPACER

5334062

$20,99 Unit Price incl. VAT

23

SHAFT .687 X 8.456

5133188

9999999

Not Available

24

TRACK 144 IN X 2 IN SERIES 4

5413073

$1 278,89 Unit Price incl. VAT

24

COBRA TRACK 15 IN X 144 IN

5414013

$1 249,49 Unit Price incl. VAT

25

WSHR-.719X1.250X.065-Y

7556210

$7,34 Unit Price incl. VAT

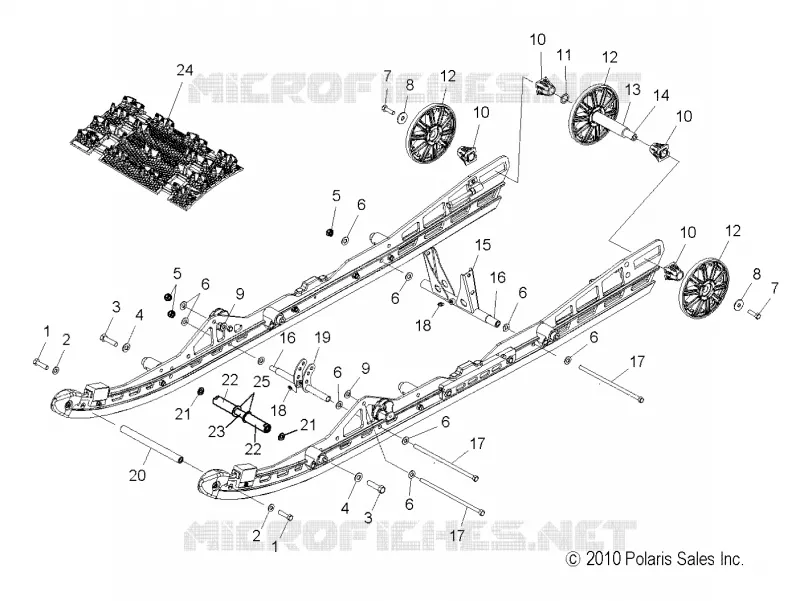

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
