1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 RXL - S910768
4
Parts Catalog
COOLING SYSTEM 650 RXL (4919531953019A)
5
Parts Diagram
Parts Catalog
BRAKE CHAINCASE 650 RXL (4919531953017A)
by
MASTER CYLINDER 650 RXL (4919531953020A)
COOLING SYSTEM 650 RXL (4919531953019A)
1
EXT COOLING RH
2511182
Not Available
2
EXT COOLING LH
2511181
Not Available
3
CENTER COOLING EXTERNAL
2511187
9999999
Not Available
4
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
5
GUARD COOLING EXT
5240101
9999999
Not Available
6
BOTTLE; OVERFLOW
5431054
9999999
Not Available
7
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
8
GASKET
5810279
$4,19 Unit Price incl. VAT
9
CAP BOTTLE OVERFLOW
5430742
5430743
$10,49 Unit Price incl. VAT
10
CLAMP-HOSE
7080134
9999999
Not Available
11
COOLER-BRAKE
2511154
9999999
Not Available
12
HOSE-PUMP INLET
5410348
9999999
Not Available
13
HOSE-ENG.OUTLET
5410439
Not Available
14
HOSE
5410379
Not Available
15
HOSE-CROSSOVER
5410350
9999999
Not Available
16
HOSE-CROSSOVER
5410324
9999999
Not Available
17
CLIP
7080277
9999999
Not Available
18
CLAMP-HOSE
7080225
9999999
Not Available
19
CLAMP-HOSE;
7080233
9999999
Not Available
21
BOLT
7512240
9999999
Not Available
22
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
23
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
24
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
25
BRACKET
5223985
Not Available
26
GROMMET RUBBER
5410021
9999999
Not Available
27
PLUG
5431096
$3,66 Unit Price incl. VAT
28
TRIM-EDGE
5521091
9999999
Not Available
29
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
30
FILTER WATER LINE
2530010
9999999
Not Available
31
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
32
HOSE RETAINER SPRING
7041079
9999999
Not Available

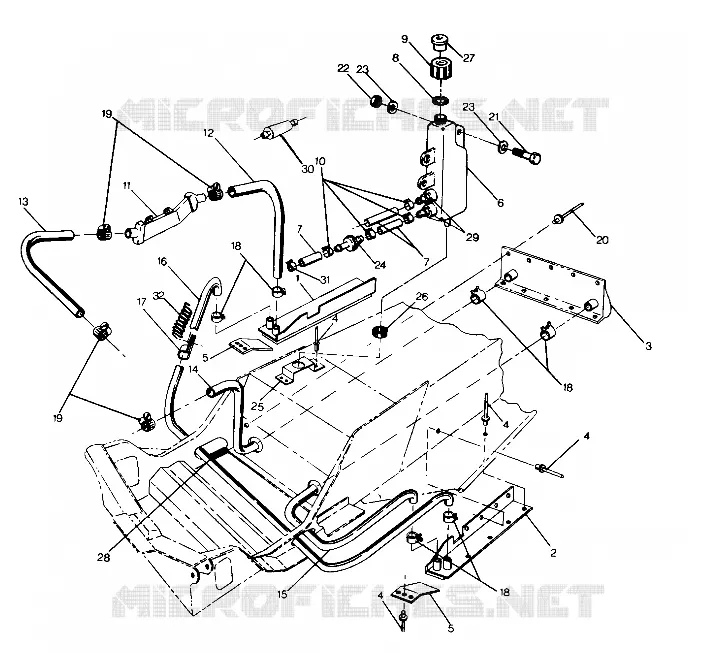

Find the detailed COOLING SYSTEM 650 RXL (4919531953019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
