1
Engine displacement
500
2
Year
2002
3
Trim
LUH 6X6 PPS - C02CL50AB
4
Parts Catalog
FRONT BRAKE
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
CONTROLS
FRONT BRAKE
-
-
-
-
-
CALIPER ASM.BRAKE FRTLH1.25
1910551
9999999
Not Available
-
ASM-CALIPER BRAKE 1-1/4 LH 9
1910692
9999999
Not Available
-
ASM-CALIPER BRAKE 1-1/4 RH 9
1910693
9999999
Not Available
-
CALIPER ASM.BRAKE FRTRH1.25
1910552
9999999
Not Available
1
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT
2
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
3
CALIPER-1.25 LH(MACH)
5133412
9990005
Not Available
3
BRAKE BOOT KIT; FRONT
1930642
$20,99 Unit Price incl. VAT
3
CALIPER-1.25 RH(MACH)
5133413
9990005
Not Available
4
CALIPER SEAL; INNER; 1.25 IN
5411596
$7,34 Unit Price incl. VAT
5
CALIPER SEAL; OUTER; 1.25 IN
5411597
$11,54 Unit Price incl. VAT
6
CALIPER PISTON; 1.25
5132405
$62,99 Unit Price incl. VAT
7
FRONT AFT BRAKE PADS KIT
2201398
2202412
$98,16 Unit Price incl. VAT
8
MOUNT ASM CALIPER
1910411
1910513
$99,74 Unit Price incl. VAT
9
BOOT; BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
10
BOOT; PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

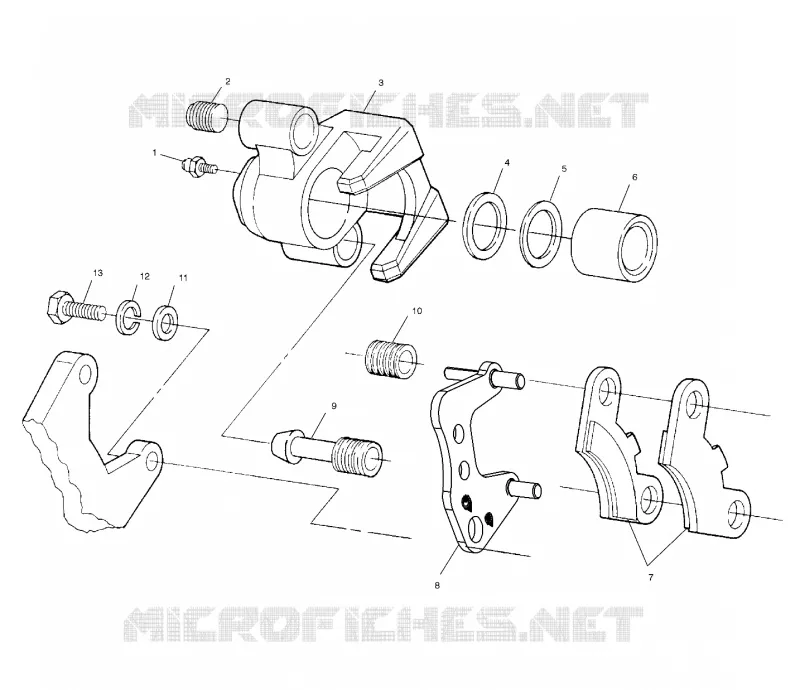

Find the detailed FRONT BRAKE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
