1
Engine displacement
600
2
Year
2020
3
Trim
600 RACER
4
Parts Catalog
LOWER STEERING AND TIE RODS
5
Parts Diagram
Parts Catalog
CHASSIS, TUNNEL GRIPS AND CLEATS
by
FRONT SUSPENSION, CONTROL ARMS AND SPINDLE
LOWER STEERING AND TIE RODS
1
2
3
4
4
5
5
6
6
7
8
8
8
9
10
10
10
10
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
32
33
33
34
35
36
37
38
39
1
SCREW
7515406
9999999
Not Available
2
WASHER .380X.813X.150
7556160
$7,34 Unit Price incl. VAT
3
MOUNT-PLATE PROGRESSIVE ARM
5262565
$62,99 Unit Price incl. VAT
4
WASHER-0.75X.400X.03 FL-Y
7556580
$2,09 Unit Price incl. VAT
5
NUT-HH M10X1.5 NYLOC ZOD
7547442
$7,34 Unit Price incl. VAT
6
REDUCER BUSHING; 12 MM
5132106
$13,64 Unit Price incl. VAT
7
SPACER-TUBE PITMAN/IDLER ARMS
5136298
$16,79 Unit Price incl. VAT
8
BALL BEARING
3514320
$27,29 Unit Price incl. VAT
9
IDLER STEERING ASSEMBLY
1823545
$230,99 Unit Price incl. VAT
10
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
11
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
12
ROD END-3/8 75 LH .750 CFR
7061063
$99,74 Unit Price incl. VAT
13
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
14
TIE ROD
5135746
$52,49 Unit Price incl. VAT
15
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
16
ROD END-3/8 PL;75 ;.750;RH
7061136
$99,74 Unit Price incl. VAT
17
E-RING
7710901
$15,74 Unit Price incl. VAT
18
STUD-SPACER M10X1.5 8.8 ZOD
7519163
$58,58 Unit Price incl. VAT
19
RING-RET INT 1.125
7710642
$4,19 Unit Price incl. VAT
20
RACE STEERING POST WELD; LOWER; BLACK
1824510329
Not Available
21
STEERING CAM FOLLOWER
3514969
$188,99 Unit Price incl. VAT
22
SCR-3/8-24X1.875 TX/TRSS;GR5-Y
7518464
$41,99 Unit Price incl. VAT
23
WASHER
7555983
7555893
$1,56 Unit Price incl. VAT
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
STEERING RACK PIVOT
5134692
$36,74 Unit Price incl. VAT
26
O RING
5411220
$11,54 Unit Price incl. VAT
27
STEERING RACK ASSEMBLY
1824514
$194,24 Unit Price incl. VAT
28
COVER-TIE ROD BOOT; LH
5249641
$19,94 Unit Price incl. VAT
28
COVER-TIE ROD BOOT; RH
5249642
$19,94 Unit Price incl. VAT
29
BOOT-TIE ROD;LH
5412744
$89,24 Unit Price incl. VAT
29
BOOT-TIE ROD;RH
5412745
$73,49 Unit Price incl. VAT
30
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
31
BUSHING-TIE ROD BOOT
5436174
$20,99 Unit Price incl. VAT
32
PLATE-RIE ROD BOOT; RH
5249227
$83,99 Unit Price incl. VAT
32
PLATE-TIE ROD BOOT; LH
5249226
$83,99 Unit Price incl. VAT
33
SCR-#10-24 5/8 TOP R TH TX Y
7518284
$4,19 Unit Price incl. VAT
34
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
35
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
36
STEERING POST BRACKET; ALUMINUM; .75 W
5132967
$68,24 Unit Price incl. VAT
37
STEERING POST BUSHING
5453688
$15,74 Unit Price incl. VAT
38
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
39
PLUG ENDCAP RIBBED
5432831
$10,49 Unit Price incl. VAT

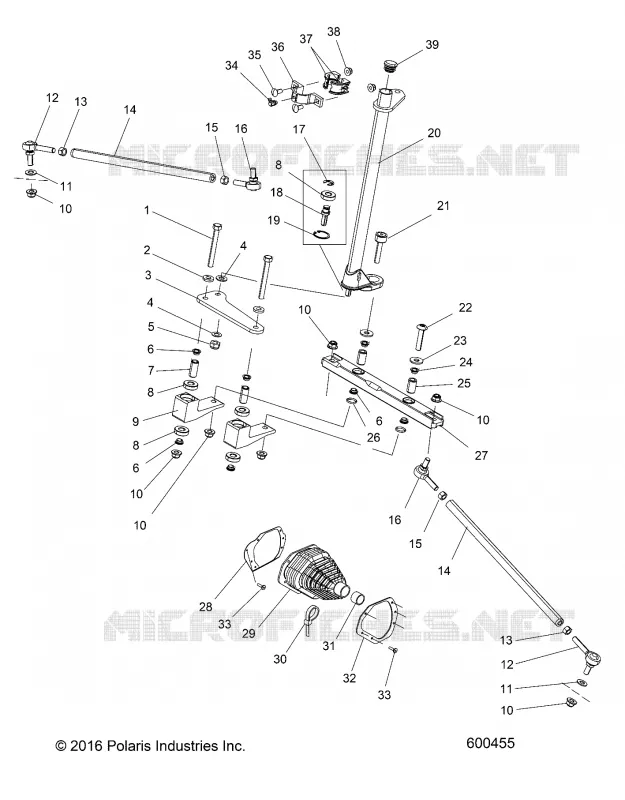

Find the detailed LOWER STEERING AND TIE RODS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
