1
Engine displacement
780
2
Year
1997
3
Trim
SLT 780 - B974588
4
Parts Catalog
DRIVE SYSTEM SLT 780 B974588 (4941174117B002)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SLT 780 B974588 (4941174117B001)
by
PROPULSION SLT 780 B974588 (4941174117B003)
DRIVE SYSTEM SLT 780 B974588 (4941174117B002)
1
2
3
4
4
4
5
6
6
7
8
9
9
10
11
12
13
14
1
COUPLER ASMDRIVE
1060119
9999999
Not Available
2
O RING;(10)
5410735
9999999
Not Available
3
SHROUD COUPLER
5432129
9999999
Not Available
4
CLAMP; HOSE
7080481
9999999
Not Available
5
O-RING(10)
5410731
9999999
Not Available
6
BUMPER
5410663
9999999
Not Available
7
SHAFT; DRIVE
6230103
6230205
Not Available
8
FITTING LUBE.
7080629
9999999
Not Available
9
SEAL
3610040
9999999
Not Available
10
ASM.HOUSINGBEARING
1341145
9999999
Not Available
11
HOSE BRG.HSG.
5411027
9999999
Not Available
12
NUT SHAFT HSG.
5431985
9999999
Not Available
13
O-RING
5411174
$3,14 Unit Price incl. VAT
14
HSGSHAFTTHRU-HULLO-RING
5432298
9999999
Not Available

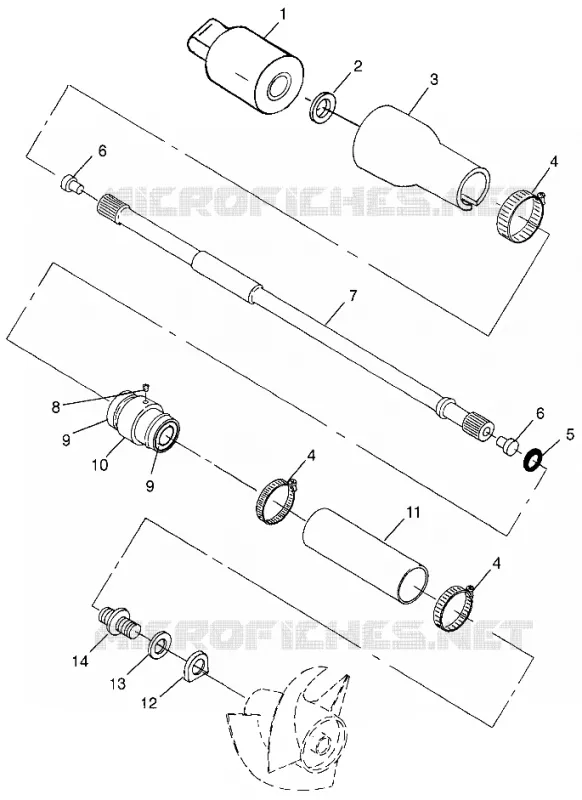

Find the detailed DRIVE SYSTEM SLT 780 B974588 (4941174117B002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
