1
Engine displacement
1000
2
Year
2020
3
Trim
RANGER XP 1000 EPS CREW FS
4
Parts Catalog
FRONT SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT SUSPENSION HUB
FRONT SUSPENSION CONTROL ARMS
1
2
3
4
5
6
7
8
9
10
11
12
13
1
CTRL ARM FRT LWR LEFT SIDE MATTE MT BLK
1024247458
Not Available
2
CONTROL ARM FRT LWR RIGHT SIDE MT BLK
1024248458
Not Available
3
SEALED PIVOT CAP ASSEMBLY; 10 MM
1543611
$10,49 Unit Price incl. VAT
4
SHORT PIVOT SHAFT
5139966
5144658
$10,49 Unit Price incl. VAT
5
STANDARD SUSPENSION BUSHING; 10 MM
5452233
$5,24 Unit Price incl. VAT
6
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
7
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
8
WASHER
7556153
$3,66 Unit Price incl. VAT
9
A-ARM; FRONT; UPPER; LEFT SIDE; MT BLK
1022806458
Not Available
10
CONTROL ARM; UPPER; RIGHT SIDE; MT BLK
1022807458
Not Available
11
CV SHIELD; FRONT; LEFT; GLOSS BLACK
5437544070
Not Available
12
CV SHIELD; FRONT; RIGHT; GLOSS BLACK
5437545070
Not Available
13
RIVET
7621472
$2,09 Unit Price incl. VAT

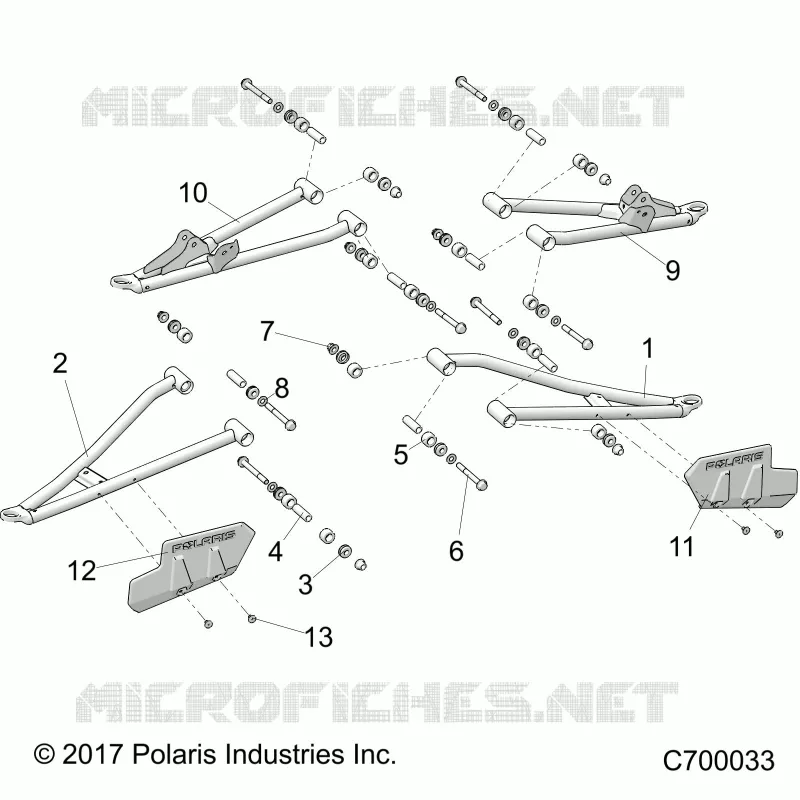

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
