1
Engine displacement
925
2
Year
2017
3
Trim
RZR XP TURBO MD
4
Parts Catalog
ENGINE, THROTTLE BODY AND VALVE COVER
5
Parts Diagram
Parts Catalog
ENGINE, STATOR AND FLYWHEEL
by
ENGINE, THROTTLE PEDAL
ENGINE, THROTTLE BODY AND VALVE COVER
1
SPARK PLUG(4)
3023173
$16,79 Unit Price incl. VAT
2
VALVE COVER ISOLATOR
5413806
$15,74 Unit Price incl. VAT
3
2 CYLINDER SEAL VALVE COVER
5415011
$94,49 Unit Price incl. VAT
4
COVER-VALVE; CAST; 2CYL; DOHC
5633264
5634650
$194,24 Unit Price incl. VAT
5
SHOULDER BOLT; 6 MM X 12 MM X 15 MM
7519165
$25,19 Unit Price incl. VAT
6
GROUNDING WASHER
7556750
$7,34 Unit Price incl. VAT
7
MANIFOLD ADAPTER; MOLDED
1205320
$141,74 Unit Price incl. VAT
8
OIL FILL CAP ASSEMBLY
1205012
$68,24 Unit Price incl. VAT
9
O-RING FILL CAP
5414362
$6,81 Unit Price incl. VAT
10
SCREW
7519297
$7,34 Unit Price incl. VAT
11
WIRE-SPARKPLUG MAG
4014295
4017694
$136,49 Unit Price incl. VAT
12
WIRE-SPARKPLUG PTO
4014296
4017695
$136,49 Unit Price incl. VAT

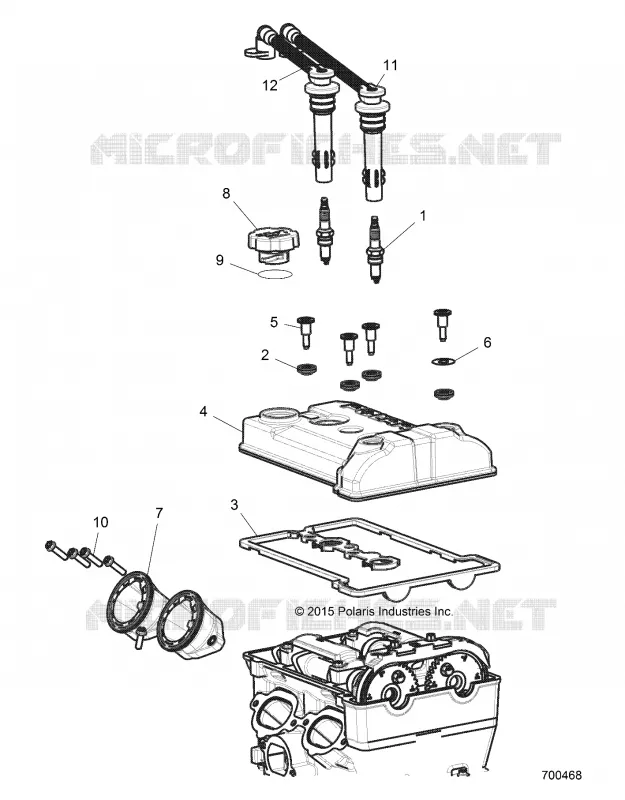

Find the detailed ENGINE, THROTTLE BODY AND VALVE COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
