GEAR SELECTOR XPLORER 4X4 W959140 (4930223022C010)
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT ASSEMBLY XPLORER 4X4 W959140 (4930223022C009)
by
GEARCASE ASSEMBLY XPLORER 4X4 W959140 (4930223022C011)
GEAR SELECTOR XPLORER 4X4 W959140 (4930223022C010)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
1
KNOB ASM;HI/LO/REV.
3233195
9999999
Not Available
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
WIRE STRAP
3233131
9999999
Not Available
4
CLAMP
3233132
9999999
Not Available
5
BOOT GEAR SELECTOR
3233133
9999999
Not Available
6
SCREW
3233085
9999999
Not Available
7
COVER GEARSELECT 5-BOLT
3233204
Not Available
8
SPRING HOLDING
3233158
9999999
Not Available
9
HANDLE SUBASM (GS GEN IV)
3233197
Not Available
10
CUP; BEARING
3233063
9999999
Not Available
11
SPRING CENTERING
3233083
9999999
Not Available
12
PIN STOP
3233062
9999999
Not Available
13
DETENT SPRING
3233069
9999999
Not Available
14
DETENT BULLET
3233060
9999999
Not Available
15
SWITCH GEAR SELECTOR
3233138
9999999
Not Available
16
BODY GEARSELECT 5-BOLT Substituted by 3233343
3233205
Not Available
17
O-RING
3233076
$11,54 Unit Price incl. VAT
18
SLIDE HIGH/REV.
3233088
Not Available
19
ROD END; RH
7060142
9999999
Not Available
20
BOLT
7546702
9999999
Not Available
21
SHIFTLINK ROD
5020729
9999999
Not Available
22
ROD END; LH
7060141
7061013
$120,74 Unit Price incl. VAT
23
ROD LOW-RA.SHIFTLINK
5020730
9999999
Not Available
24
NUT
7546701
9999999
Not Available
25
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
26
SLIDE LOW
3233089
9999999
Not Available
27
INTERLOCK BUTTERFLY
3233084
9999999
Not Available
28
PIN INTERLOCK
3233070
9999999
Not Available
29
SELECTOR ASM;GEAR;GEN IV
1341168
1341182
Not Available

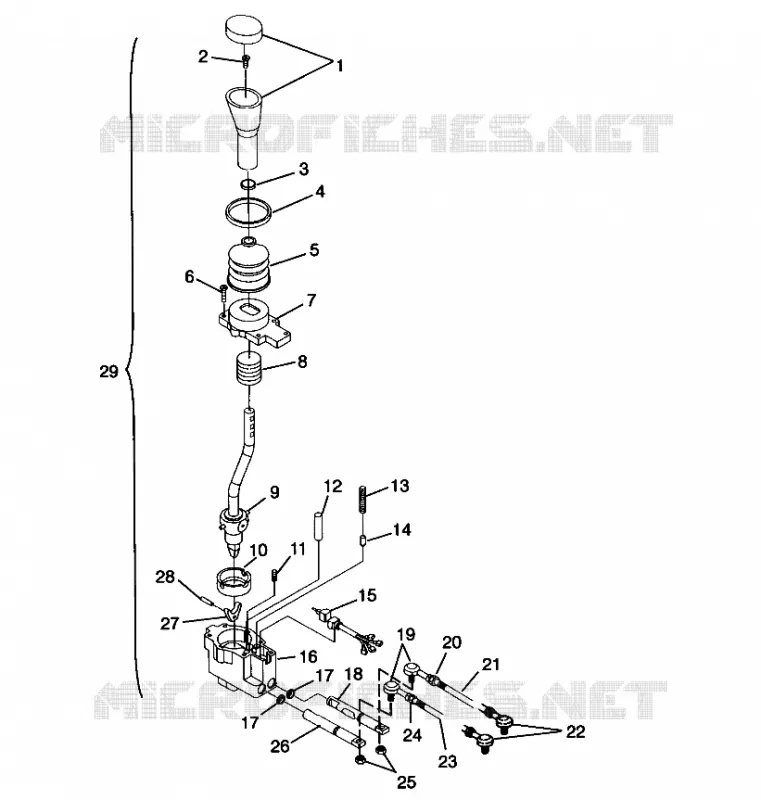

Find the detailed GEAR SELECTOR XPLORER 4X4 W959140 (4930223022C010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
