CYLINDER BLOCK AND RELATED for POLARIS SLINGSHOT R / SL Autodrive from 2020

CYLINDER BLOCK AND RELATED

1

ASM-BLOCK MACH

3023771

3024114

$1 574,99 Unit Price incl. VAT

2

DOWEL-HOLLOW M15

7662300

9999999

Not Available

3

RING-TOP

3023463

$57,74 Unit Price incl. VAT

4

RING-SECOND

3023464

$52,49 Unit Price incl. VAT

5

ASM-PISTON

3023462

$283,49 Unit Price incl. VAT

5

PISTON-MACH

3023198

$155,39 Unit Price incl. VAT

6

C-CLIP; ROUNG(2)

7710479

$13,64 Unit Price incl. VAT

7

PIN-PISTON

3023199

$40,94 Unit Price incl. VAT

8

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

9

ASM-ROD CONNECTING 2 CLN

3023057C

$299,24 Unit Price incl. VAT

10

CONNECTING ROD BEARING; MIDNIGHT BLUE

3514998027

Not Available

10

CONNECTING ROD BEARING; RED

3514998015

Not Available

10

CONNECTING ROD BEARING; WHITE

3514998016

Not Available

10

CONNECTING ROD BEARING; MEDIUM YELLOW

3514998053

Not Available

11

CONNECTING ROD BOLT 9MM X 1.0MM X 44MM

7520356

$41,99 Unit Price incl. VAT

12

SCR-CSK-M6X1 8.8

7520501

$6,29 Unit Price incl. VAT

13

WHEEL-CPS 36-1

3023176

3024233

$99,74 Unit Price incl. VAT

14

BEARING-MAIN UPR THRUST GRADE2

3023376002

Not Available

14

BEARING-MAIN UPR THRUST GRADE1

3023376001

Not Available

14

BEARING-MAIN UPR THRUST GRADE5

3023376005

Not Available

14

BEARING-MAIN UPR THRUST GRADE4

3023376004

Not Available

14

BEARING-MAIN UPR THRUST GRADE3

3023376003

Not Available

15

SCR-HXFL-M12X1.5X123 10.9 SEMS

3023276

$14,69 Unit Price incl. VAT

16

BEARING-MAIN LWR THRUST GRADE4

3023374004

Not Available

16

BEARING-MAIN LWR THRUST GRADE1

3023374001

Not Available

16

BEARING-MAIN LWR THRUST GRADE2

3023374002

Not Available

16

BEARING-MAIN LWR THRUST GRADE5

3023374005

Not Available

16

BEARING-MAIN LWR THRUST GRADE3

3023374003

Not Available

17

BEARING-MAIN UPR GRADE 3

3023375003

Not Available

17

BEARING-MAIN UPR GRADE 1

3023375001

Not Available

17

BEARING-MAIN UPR

3023375

Not Available

17

BEARING-MAIN UPR GRADE 5

3023375005

Not Available

17

BEARING-MAIN UPR GRADE 4

3023375004

Not Available

17

BEARING-MAIN UPR GRADE 2

3023375002

Not Available

18

CRANKSHAFT-MACH

3023298

3024069

$1 942,49 Unit Price incl. VAT

19

BEARING-MAIN LWR GRADE 1

3023373001

Not Available

19

BEARING-MAIN LWR GRADE 4

3023373004

Not Available

19

BEARING-MAIN LWR GRADE 3

3023373003

Not Available

19

BEARING-MAIN LWR GRADE 5

3023373005

Not Available

19

BEARING-MAIN LWR GRADE 2

3023373002

Not Available

20

ASM-REED VALVE

3023317

$83,99 Unit Price incl. VAT

21

SCR-TORX BTNHD;M6X12

7518330

$9,44 Unit Price incl. VAT

22

DOWEL-M11 H6

7052670

$10,49 Unit Price incl. VAT

23

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

24

SCR-HXFL-M8X1.25X50 8.8 DOG

7520503

$6,29 Unit Price incl. VAT

25

JET-PISTON COOLING;0.8

2521788

$89,24 Unit Price incl. VAT

26

SOCKET HEAD SCREW; 6 MM X 12 MM

7517739

$17,84 Unit Price incl. VAT

27

TENSIONER-CHAIN

3023189

$149,09 Unit Price incl. VAT

28

SCR-HXFL-M6X1.0X30 8.8 DOG

7520497

$6,29 Unit Price incl. VAT

29

CRANK POSITION SENSOR; 445 MM

4015068

$209,99 Unit Price incl. VAT

30

SCR-TXPH-M6X1.0X20 8.8 DOG

7520496

$6,29 Unit Price incl. VAT

31

KNOCK BOSCH SENSOR

2413713

$120,74 Unit Price incl. VAT

32

SCR-M8X1.25X30 HX/FL-YD

7517262

$10,49 Unit Price incl. VAT

33

SCR-HXFL-M12X1.5X300 10.9 SEMS

3023275

$41,99 Unit Price incl. VAT

34

JET-OIL M6X1.0 1.0 ORIFICE

2521817

$9,44 Unit Price incl. VAT

35

DOWEL-HOLLOW M15

7662300

9999999

Not Available

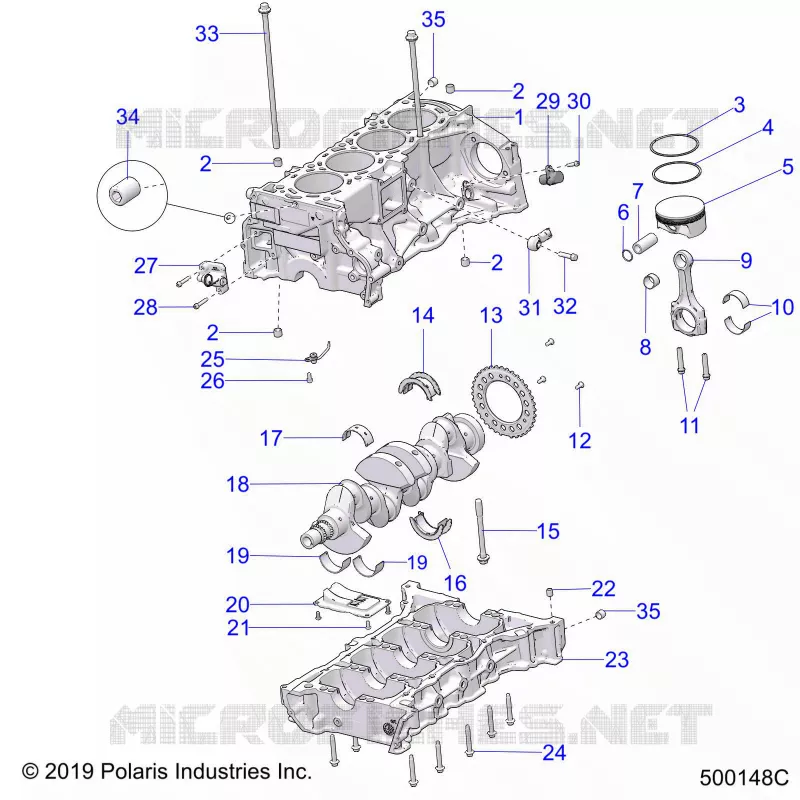

Find the detailed CYLINDER BLOCK AND RELATED POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
