1
Engine displacement
autre
2
Year
1992
3
Trim
SWE SUPERTRAK - S920161
4
Parts Catalog
DRIVE CLUTCH SUPERTRAK (4921292129027A)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM SUPERTRAK (4921292129026A)
by
DRIVEN CLUTCH SUPERTRAK (4921292129028A)
DRIVE CLUTCH SUPERTRAK (4921292129027A)
1
CLUTCH BASIC#28(DRIVE) Substituted by 1321597 (Less 6 14)
1321548
Not Available
2
BOLT
7512265
9999999
Not Available
3
WASHER SPLIT LOCK
7552804
9999999
Not Available
4
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
5
RETAINING RING COVER
7710417
$2,09 Unit Price incl. VAT
6
SPRING
7041061
9999999
Not Available
7
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
8
DRIVE CLUTCH KIT
2200387
$47,24 Unit Price incl. VAT
9
BUTTON
5430728
5430445
$11,54 Unit Price incl. VAT
10
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
11
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
12
JAM NUT
5020425
$41,99 Unit Price incl. VAT
13
SPACER .030 [No Longer Available] (.030)
5130753
Not Available
13
SPACER .020
5210752
$3,14 Unit Price incl. VAT
13
SPACER .050
5210754
$6,29 Unit Price incl. VAT
14
WEIGHT; .010(6)
5630272
9999999
Not Available
15
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
16
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
17
BEARING SLEEVE.
3576503
9999999
Not Available

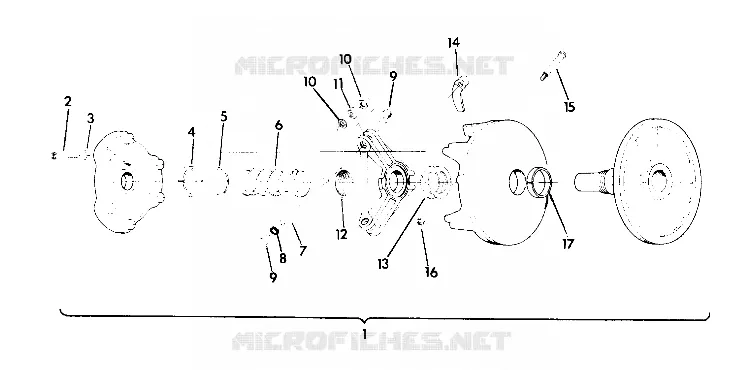

Find the detailed DRIVE CLUTCH SUPERTRAK (4921292129027A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
