Engine displacement
850
2
Year
2015
3
Trim
SCRAMBLER 850 MD
4
Parts Catalog
FRONT RACK SUPPORT
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
FUEL TANK
FRONT RACK SUPPORT
1
2
3
4
5
6
7
8
9
10
10
11
11
1
2
3
4
5
6
6
7
8
9
10
11
1
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
2
RACK SUPPORT CAST
5632712
5639282
$161,69 Unit Price incl. VAT
3
CAST BULKHEAD
5633041
$351,74 Unit Price incl. VAT
4
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
5
BOLT-M8X1.25X65 HXFLG
7518816
$7,34 Unit Price incl. VAT
6
HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM
7518450
$3,14 Unit Price incl. VAT
7
RADIATOR SUPPORT; CAST
5632356
$89,24 Unit Price incl. VAT
8
RACK SUPPORT; FRONT; LEFT
5632713
$89,24 Unit Price incl. VAT
9
RACK SUPPORT; FRONT; RIGHT
5632714
$89,24 Unit Price incl. VAT
10
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
11
NYLOK NUT; 8 MM X 1.25 MM
7547144
$6,29 Unit Price incl. VAT

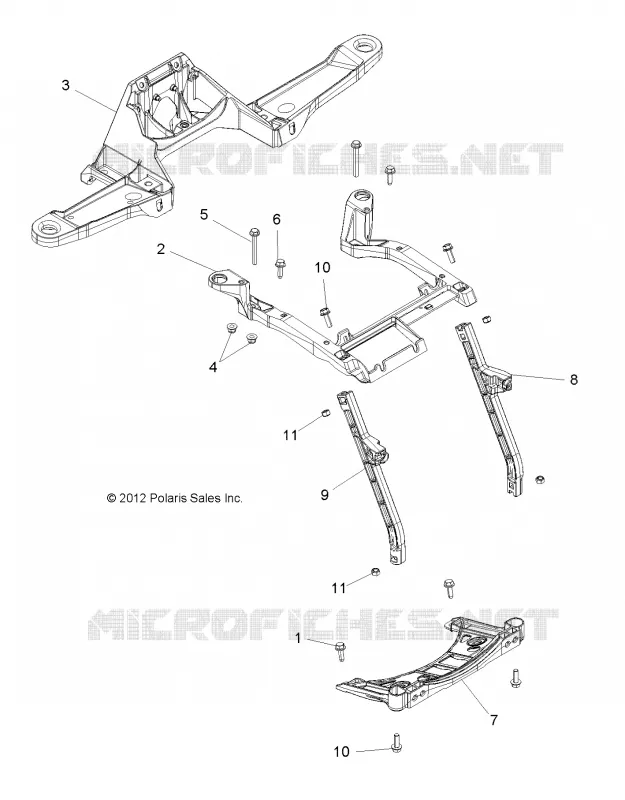

Find the detailed FRONT RACK SUPPORT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
