REAR SUSPENSION CONTROL ARM, MOUNTING
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT STRUT
by
REAR SUSPENSION CONTROL ARMS
REAR SUSPENSION CONTROL ARM, MOUNTING
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
1
BRKT-CONTROL-ARM PIVOT BLK
5273355329
Not Available
2
SCREW
7517632
$10,49 Unit Price incl. VAT
3
BOLT-3/8-16X7 HEX FLANGE GR5
7518365
$13,64 Unit Price incl. VAT
4
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
5
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
6
BUSHING-A-ARM-SHORT BLK
5438895
5439270
$4,19 Unit Price incl. VAT
6
HD BUSHING W/ SEAL ASSEMBLY(4)
1543326
$24,14 Unit Price incl. VAT
7
BOLT
7515472
$4,19 Unit Price incl. VAT
8
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
9
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
10
WASHER
7556153
$3,66 Unit Price incl. VAT
11
BUSHING CONTROL; LOWER; BLACK
5438902
$8,39 Unit Price incl. VAT
12
BEARING BUSHING CARRIER; 7/16
5632291
$41,99 Unit Price incl. VAT
13
BOLT 7/16 X 14 X 2.75 GRADE 5
7517873
$4,19 Unit Price incl. VAT
14
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
15
WASHER
7555740
$3,14 Unit Price incl. VAT
16
C BORE A-ARM SHAFT
5139929
$52,49 Unit Price incl. VAT
17
HD BUSHING W/ SEAL ASSEMBLY(4)
1543326
$24,14 Unit Price incl. VAT
17
A-ARM BUSHING; LONG; 102.36 MM
5436973
$9,44 Unit Price incl. VAT
18
SCR-3/8-24X1 3/4;HX;GR8;P30;Y
7521149
$6,29 Unit Price incl. VAT

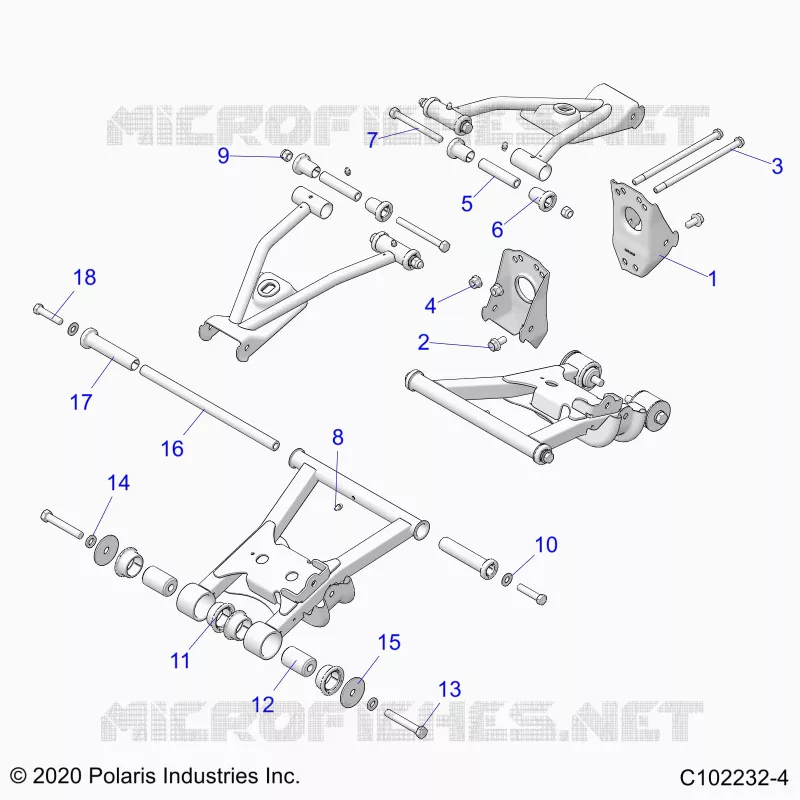

Find the detailed REAR SUSPENSION CONTROL ARM, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
