1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 4X4 MOSE - A01CD32AB
4
Parts Catalog
CONTROLS
5
Parts Diagram
Parts Catalog
FRONT BRAKE
by
CONTROLS
CONTROLS
1
THROTTLE CONTROL COVER
5434113
9999999
Not Available
2
O-RING
5410193
$7,34 Unit Price incl. VAT
3
O-RING
5411439
$4,19 Unit Price incl. VAT
4
CABLE-THROTTLE SNAP-IN 4-CYCLE
7080709
$104,99 Unit Price incl. VAT
4
CABLE-THROTTLE 1/4 TURN 991 MM
7080969
9999999
Not Available
5
THROTTLE CONTROL-ASM;AWD
2010205
9999999
Not Available
5
THROTTLE CONTROL;HOBBS;2X4
2010203
9999999
Not Available
6
BRKT-THROTTLE STOP
5245134
9999999
Not Available
7
SCR-#8-18X.50 PH/PN HI/LO B
7517910
$10,49 Unit Price incl. VAT
8
THROTTLE ASSEMBLY CLAMP
2010191
9999999
Not Available

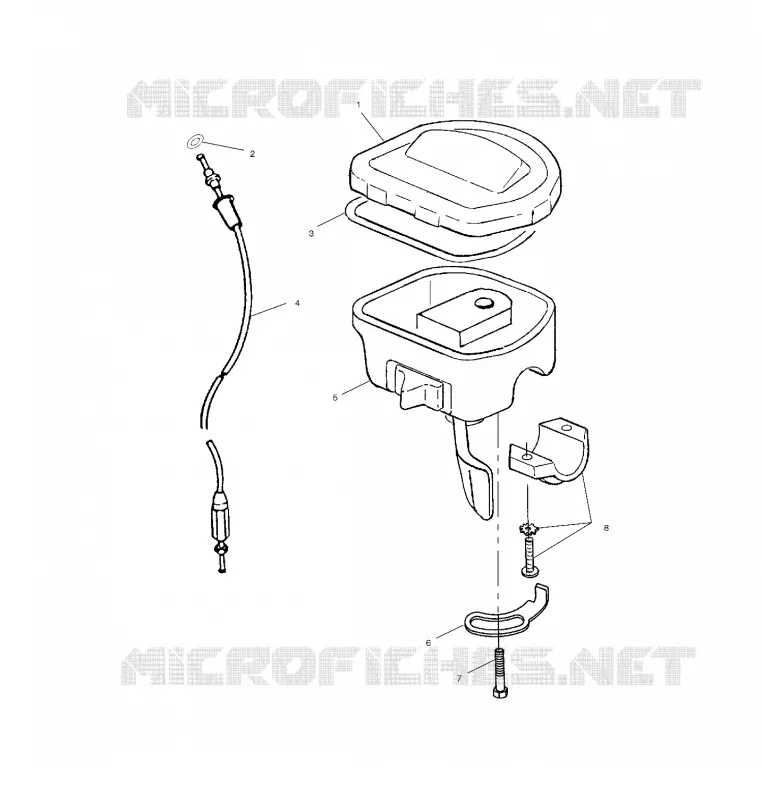

Find the detailed CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
