WHEELS, REAR TIRE AND BRAKE DISC for POLARIS SPORTSMAN 570 EFI MD from 2016

WHEELS, REAR TIRE AND BRAKE DISC

1

E-MARK TIRE; 24X10-12

5415735

Not Available

1

TIRE 25 X 11 - 12 489

5415730

5419052

$264,59 Unit Price incl. VAT

1

TIRE-25X11-12 489 E-MARK

5414129

5419052

$264,59 Unit Price incl. VAT

1

E-MARK NS388 TIRE; 24X10-12

5415281

Not Available

2

REAR RIM; GS BLK

1520457067

Not Available

3

HUB DUST COVER

5413427

$52,49 Unit Price incl. VAT

4

CASTLE NUT; 18 MM X 1.5 MM

7547337

$3,66 Unit Price incl. VAT

5

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

6

CONE WASHER

7555796

$14,69 Unit Price incl. VAT

7

REAR WHEEL HUB ASSEMBLY MACHINED

5135113

5143629

$157,49 Unit Price incl. VAT

8

PRESS FIT STUD

7518378

$3,14 Unit Price incl. VAT

9

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

10

WHEEL BEARING; 40 MM X 74 MM X 40 MM

3514635

$73,49 Unit Price incl. VAT

11

WHEEL CARRIER BEARING; MACHINED

5135563

$121,79 Unit Price incl. VAT

12

BOLT-3/8-16X3/4-HX/CP/LK-GR5-Y

7518903

$7,34 Unit Price incl. VAT

13

REAR BRAKE DISC 8.625 IN.

5248250

$141,74 Unit Price incl. VAT

14

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

15

FLANGE NUT

7547237

$4,19 Unit Price incl. VAT

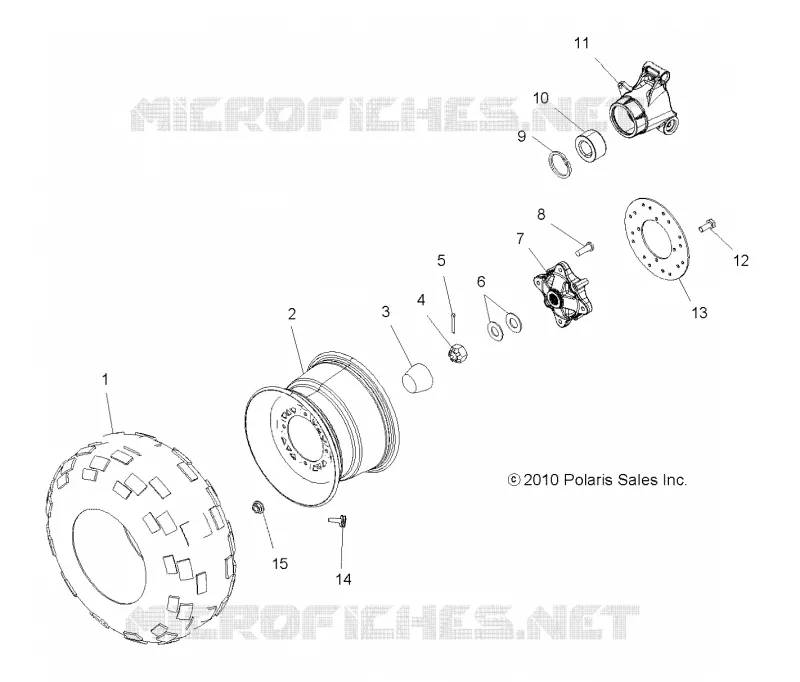

Find the detailed WHEELS, REAR TIRE AND BRAKE DISC POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
