1
Engine displacement
1050
2
Year
1999
3
Trim
SLTX-B - B994596
4
Parts Catalog
ELECTRICAL BOX
5
Parts Diagram
Parts Catalog
BILGE PUMP
by
CRANKCASE
ELECTRICAL BOX
1
2
22
4
5
6
7
8
9
10
11
12
13
14
1
2
22
4
5
6
7
8
9
10
11
12
13
14
1
2
2
22
4
5
6
7
8
9
10
10
10
11
11
11
12
12
12
13
13
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
22
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
NUT HEX S.S.
7541931
$9,44 Unit Price incl. VAT
2
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPACER
7556087
Not Available
5
SCREW [No Longer Available]
7517635
Not Available
6
BRACKET-IGN.BOX BULK.MOUNT
5243107
Not Available
7
COVER
5433119
9999999
Not Available
8
SEAL
5432569
9999999
Not Available
9
BOLT; S.S.
7512042
9999999
Not Available
10
NUT; SS.
7547036
9999999
Not Available
11
WASHER; LOCK
7552615
9999999
Not Available
12
WASHER; FLAT; S.S.
7555837
9999999
Not Available
13
WASHER RUBBER(10)
7555870
9999999
Not Available
14
PLATE BTM E-BOX
5211761
9999999
Not Available
15
LATCH
5432503
9999999
Not Available
16
PIN LATCH (10)
5333544
9999999
Not Available
17
CAP GROMMET
5432502
9999999
Not Available
18
ELECTRICAL BOX ACCESSORY
2631997
9999999
Not Available
19
REG.RECT/CUTOFF LR31
4060192
9999999
Not Available
20
TERM.BOARD ASMMFD
2434014
9999999
Not Available
21
HOOK; D;SST/SS;(10)
5224472
9999999
Not Available
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
PLATE TOP E-BOX
5211760
9999999
Not Available
24
STRAP
5411456
9999999
Not Available
25
CKT.BREAKER 15A.(WATER.)
2434011
9999999
Not Available
26
GROMMET
5411235
9999999
Not Available
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
ELECTRICAL BOX;IGNITION;ASM.
2632137
9999999
Not Available
29
BRKT COIL/SOLENOID .078 THK
5243538
Not Available
30
BRKT;ACCS. E-BOX MOUNT
5243235
9999999
Not Available
31
BOLT
7515127
9999999
Not Available
32
WASHER; LOCK; S.S.
7555838
9999999
Not Available
33
HARNESS-BILGE PUMPCONNECTOR
2460753
9999999
Not Available
34
HARNESS-WIRE MFD 6W 8P 80IN
2460767
Not Available
35
HARNESS-CROSS TALK
2460742
Not Available
36
CABLE-SOLENOID/STARTER
4010237
9999999
Not Available
37
CABLE-BATTERY/SOLENOID
4010238
9999999
Not Available
38
HARNESS-33 INCH 6 WIRE
2460744
Not Available
39
HARNESS-9 WIRE STATOR;3CYL
2460717
9999999
Not Available
40
BOOT THREADED
7080461
9999999
Not Available
41
O-RING
5411491
9999999
Not Available
42
DECAL WARN HI.VOLT.
7073713
9999999
Not Available
43
DECAL ELECT.BOX RESET
7073734
Not Available
44
PLATE STATOR 1 HOLE
5432574
9999999
Not Available
45
WASHER
7555836
9999999
Not Available
46
BOLT SS
7515113
9999999
Not Available

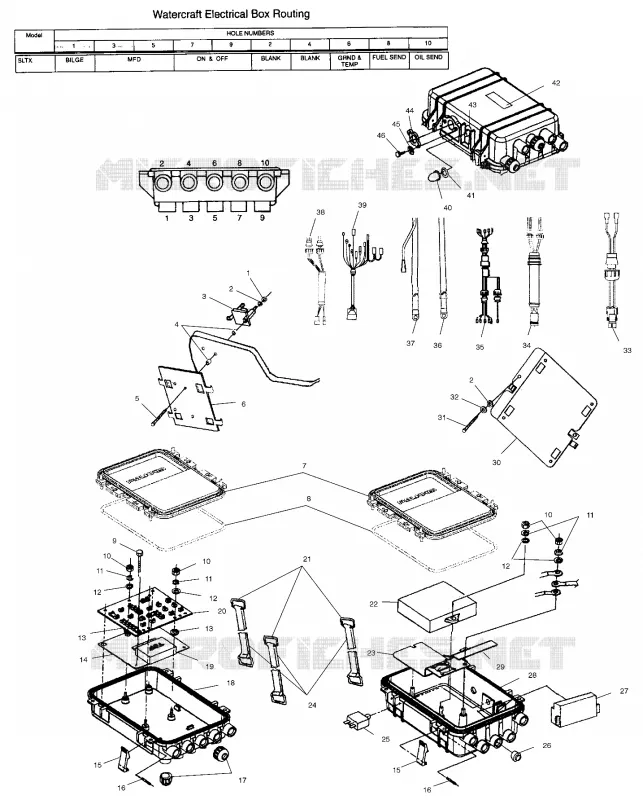

Find the detailed ELECTRICAL BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
