LOWER STEERING for POLARIS 600 AXYS PRO RMK 155 from 2021

LOWER STEERING

1

IDLER ASSEMBLY

1824547

$220,49 Unit Price incl. VAT

2

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$17,84 Unit Price incl. VAT

3

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

4

SHAFT-PIVOT IDLER

5138365

$47,24 Unit Price incl. VAT

5

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

6

ROD END; RIGHT; 10 MM X 26.5 MM; 70 DEG

7061166

$104,99 Unit Price incl. VAT

7

NUT-M10X1.5 LH ZOD

7547431

$6,29 Unit Price incl. VAT

8

ROD-TIE 296.29MM

5338122

$47,24 Unit Price incl. VAT

9

NUT-M10X1.5 ZOD

7547430

9999999

Not Available

10

ROD END; LEFT; 10 MM X 23 MM; 75 DEG

7061165

$104,99 Unit Price incl. VAT

11

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

12

HEX FLANGE SCREW; 8 MM X 1.25 MM X 55 MM

7519242

$9,44 Unit Price incl. VAT

13

STEERING POST BUSHING

5451227

$7,34 Unit Price incl. VAT

14

BRUSHING SPACER

5137796

$7,34 Unit Price incl. VAT

15

TUBE PLUG

7081210

$7,34 Unit Price incl. VAT

16

PITMAN ARM ASSEMBLY

1824669

$173,24 Unit Price incl. VAT

17

E-RING

7710901

$15,74 Unit Price incl. VAT

18

BALL BEARING

3514320

$27,29 Unit Price incl. VAT

19

STUD-SPACER M10X1.5 8.8 ZOD

7519163

$58,58 Unit Price incl. VAT

20

RING-RET INT 1.125

7710642

$4,19 Unit Price incl. VAT

21

NUT-M8X1.25C10 HX NYL DIN982 Z

7547405

$2,09 Unit Price incl. VAT

22

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$6,29 Unit Price incl. VAT

23

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

24

STRAP-PITMAN/IDLER

5261249

$18,89 Unit Price incl. VAT

25

TIE ROD; NARROW

5340293

$68,24 Unit Price incl. VAT

26

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$11,54 Unit Price incl. VAT

27

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

28

RACK LINK ASSEMBLY

7061190

$121,79 Unit Price incl. VAT

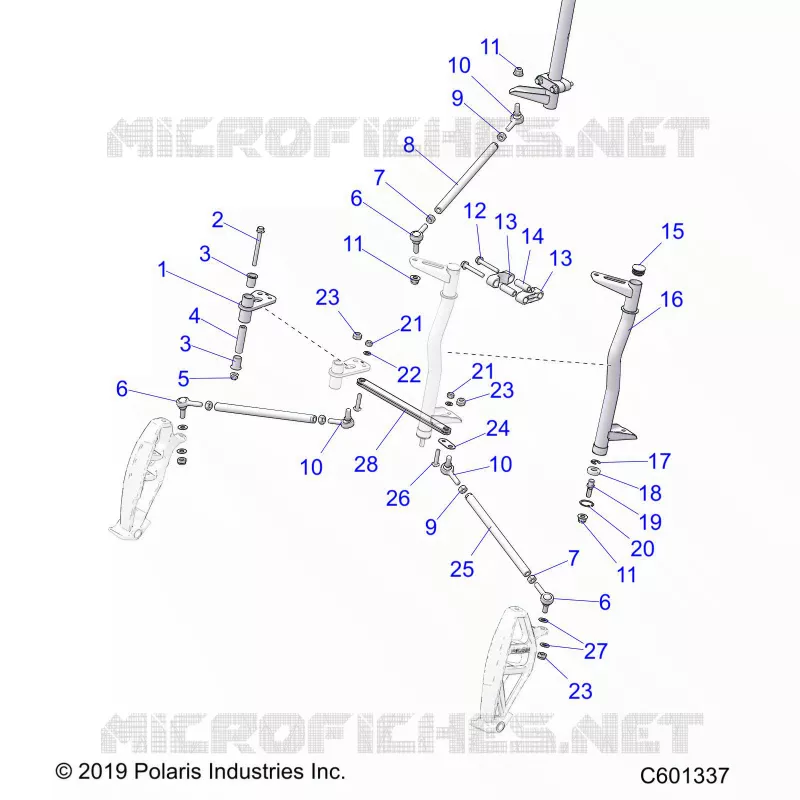

Find the detailed LOWER STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
