REAR SUSPENSION AND TRACK for POLARIS 550 INDY EVO / ES from 2020

REAR SUSPENSION AND TRACK

1

SHOCKWAVE TRACK; 121 IN X 15 IN X .91 IN

5412281

$786,44 Unit Price incl. VAT

1

CLIP GUIDE(10)

5222840

5251274

$13,64 Unit Price incl. VAT

2

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

3

SCREW

7515417

9999999

Not Available

4

BUSHING

7556509

$3,14 Unit Price incl. VAT

5

H BRACKET WELD; BLACK

1543124329

Not Available

6

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

7

SLEEVE-SHOCK PIVOT

5337829

$204,74 Unit Price incl. VAT

8

WELD-SHOCK PIVOT;BLK

1543125329

Not Available

9

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

10

BUSHING

7555918

$3,14 Unit Price incl. VAT

11

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

11

WHEEL SPOKE ASSEMBLY; 7.25

1590459

$82,94 Unit Price incl. VAT

11

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

12

SPACER IDLER CENTER

5333283

$27,29 Unit Price incl. VAT

13

IDLER SHAFT; .784 X 12.275

5335232

$83,99 Unit Price incl. VAT

14

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

15

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

16

SCR-3/8-24X9.875 HX/LP GR8-Y

7517921

$41,99 Unit Price incl. VAT

17

WASHER .390 IN X .750 IN X .0

7556188

9999999

Not Available

18

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

19

SHAFT-C BORE;.688X8.665;2045

5134078

$62,99 Unit Price incl. VAT

20

SHAFT .795 X 8.665

5134517

$52,49 Unit Price incl. VAT

21

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

22

SHAFT

5333404

$47,24 Unit Price incl. VAT

23

REAR PIVOT ARM;4.00;BLK

1541928067

Not Available

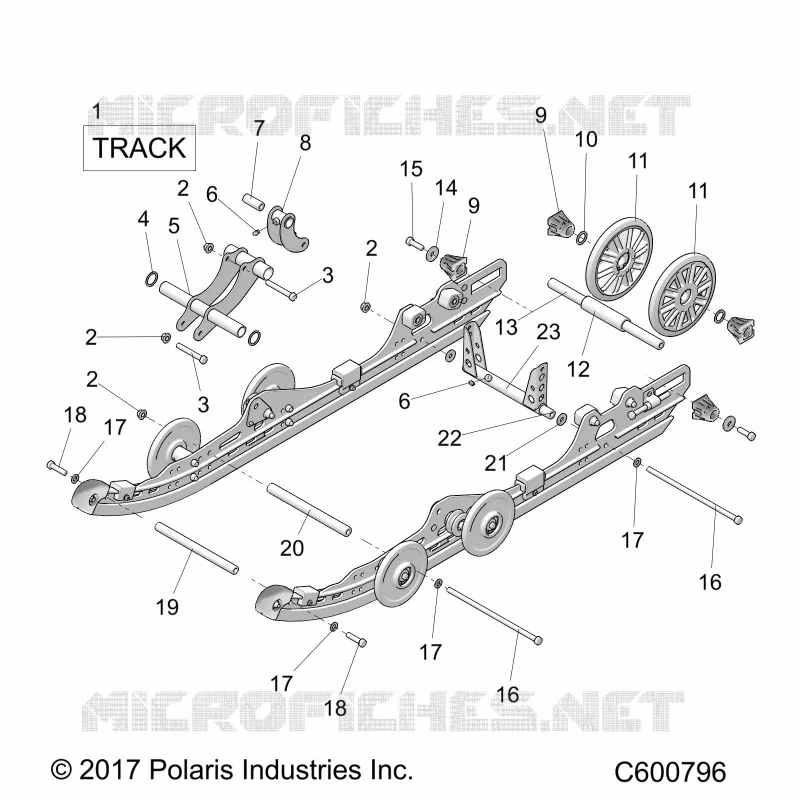

Find the detailed REAR SUSPENSION AND TRACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
