Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EPS ZUG
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
STARTER DRIVE
by
SUSPENSION, TORSION BAR
REAR SUSPENSION
18
18
11
11
20
20
21
22
22
23
24
24
25
25
25
26
27
27
28
29
1
WHEEL CARRIER BEARING; MACHINED
5135563
$121,79 Unit Price incl. VAT
2
BEARING BUSHING CARRIER; 7/16
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL; LOWER; BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER
7555740
$3,14 Unit Price incl. VAT
5
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
6
BOLT 7/16 X 14 X 2.75 GRADE 5
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
9
REAR SHOCK
7043100
$167,99 Unit Price incl. VAT
10
CAM ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
11
HD BUSHING W/ SEAL ASSEMBLY(4)
1543326
$24,14 Unit Price incl. VAT
12
SPRING-100# 11.3 FL M.BLK
7044717458
Not Available
13
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
14
BOLT-3/8-16X7 HEX FLANGE GR5
7518365
$13,64 Unit Price incl. VAT
15
CONTROL ARM BRACKET PIVOT; BLACK
5254267329
Not Available
16
SCREW
7517632
$10,49 Unit Price incl. VAT
17
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
18
CONTROL ARM WELD; UPPER; LEFT; MT BLK
1017747458
Not Available
18
CONTROL ARM WELD; UPPER; RIGHT; MT BLK
1017748458
Not Available
19
HD BUSHING W/ SEAL ASSEMBLY(4)
1543326
$24,14 Unit Price incl. VAT
20
SCR-3/8-24X1 3/4HXGR5P30Y
7520340
7521149
$6,29 Unit Price incl. VAT
21
C BORE A-ARM SHAFT
5139929
$52,49 Unit Price incl. VAT
22
CONTROL ARM WELD; LOWER; LEFT; MT BLK
1015888458
Not Available
22
WELD CONTROL; LOWER; RIGHT; MATTE BLACK
1015889458
Not Available
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
SHIELD-CV REAR BASIC BLK RH
5435009070
Not Available
24
BASIC CV SHIELD; REAR; LEFT; GLOSS BLACK
5435008070
Not Available
25
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
26
WASHER
7556153
$3,66 Unit Price incl. VAT
27
BOLT
7515472
$4,19 Unit Price incl. VAT
28
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
29
BUSHING-A-ARM-SHORT BLK
5438895
5439270
$4,19 Unit Price incl. VAT

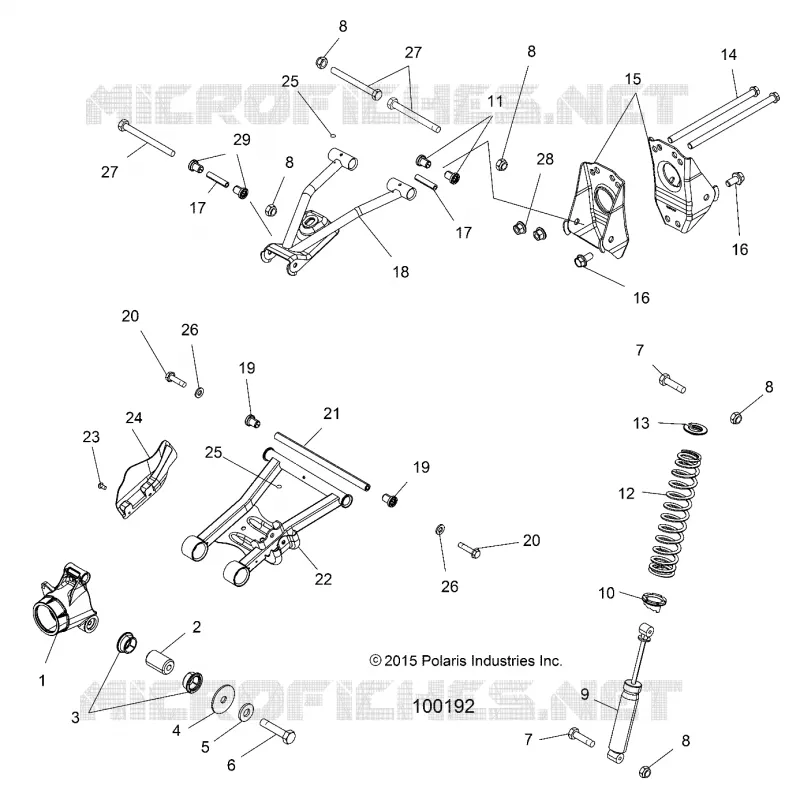

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
