ENGINE, CYLINDER HEAD, CAMS AND VALVES for POLARIS SPORTSMAN 570/450 EFI MD from 2017

ENGINE, CYLINDER HEAD, CAMS AND VALVES

1

ASM-CYLINDER HEAD;1CYL;MACH

3022521

2206221

$1 065,74 Unit Price incl. VAT

2

ASM-CAMSHAFT EXH

1204836

3023632

$278,24 Unit Price incl. VAT

3

ASM-DECOMP SYSTEM;LH

1205100

1209426

Not Available

4

INTAKE VALVE; STEEL; G-90

3022134

3022884

$52,49 Unit Price incl. VAT

5

GASKET-CYL HEAD;1 CYL;99MM

5813676

2206222

$115,49 Unit Price incl. VAT

6

DOWEL PIN; 6 MM X 10 MM

5132835

$4,19 Unit Price incl. VAT

7

SCR-HXFL-M6X1.0X35 10.9 ZY3

7519978

7520689

$14,69 Unit Price incl. VAT

8

HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM

7519197

$1,56 Unit Price incl. VAT

9

DWL-HOL M8X10

7661977

$15,74 Unit Price incl. VAT

10

VALVE TAPPET; GRADED 5.175

5138477518

Not Available

10

VALVE TAPPET; GRADED; 5.250

5138477525

Not Available

10

GRADED VALVE TAPPET; 5.300

5138477530

Not Available

10

GRADED VALVE TAPPET; 5.150

5138477515

Not Available

10

GRADED VALVE TAPPET; 5.100

5138477510

Not Available

10

GRADED VALVE TAPPET; 5.450

5138477545

Not Available

10

TAPPET-VALVE GRADED 4.625 ANVRSY GLD MET

5138477462

Not Available

10

VALVE TAPPET; GRADED 4.600

5138477460

Not Available

10

VALVE TAPPET; GRADED 4.650

5138477465

Not Available

10

VALVE TAPPET; GRADED 4.825

5138477482

Not Available

10

VALVE TAPPET; GRADED; 5.375

5138477538

Not Available

10

GRADED VALVE TAPPET; 4.450

5138477445

Not Available

10

GRADED VALVE TAPPET; 5.200

5138477520

Not Available

10

GRADED VALVE TAPPET; 4.475

5138477448

Not Available

10

VALVE TAPPET; GRADED 4.950

5138477495

Not Available

10

VALVE TAPPET 4.925MM; DELTA GREEN

5138477492

Not Available

10

VALVE TAPPET; GRADED 4.725

5138477472

Not Available

10

VALVE TAPPET; GRADED

5138477505

Not Available

10

VALVE TAPPET; GRADED; 4.575

5138477458

Not Available

10

GRADED VALVE TAPPET; 5.125

5138477512

Not Available

10

GRADED VALVE TAPPET; 4.525

5138477452

Not Available

10

GRADED VALVE TAPPET; 5.350

5138477535

Not Available

10

VALVE TAPPET; GRADED; 5.275

5138477528

Not Available

10

VALVE TAPPET; GRADED; 4.5

5138477450

Not Available

10

VALVE TAPPET 4.55MM

5138477455

Not Available

10

GRADED VALVE TAPPET; 5.075

5138477508

Not Available

10

VALVE TAPPET; GRADED; 5.325

5138477532

Not Available

10

VALVE TAPPET; GRADED 4.850

5138477485

Not Available

10

VALVE TAPPET 4.4MM GLS BLK W/ MCH HGHLTS

5138477440

Not Available

10

GRADED VALVE TAPPET; 5.425

5138477542

Not Available

10

VALVE TAPPET; GRADED 4.875

5138477488

Not Available

10

VALVE TAPPET

5138477500

Not Available

10

VALVE TAPPET; GRADED; 5.225

5138477522

Not Available

10

VALVE TAPPET 4.975MM; SB GRN MTLC

5138477498

Not Available

10

VALVE TAPPET; GRADED 4.70; COLOR

5138477470

Not Available

10

GRADED VALVE TAPPET; 5.025

5138477502

Not Available

10

GRADED VALVE TAPPET; 5.400

5138477540

Not Available

10

VALVE TAPPET; GRADED 4.800

5138477480

Not Available

10

VALVE TAPPET; GRADED 4.675

5138477468

Not Available

10

VALVE TAPPET; GRADED 4.750; COLOR

5138477475

Not Available

10

VALVE TAPPET; GRADED 4.775

5138477478

Not Available

10

VALVE TAPPET; GRADED; 4.425

5138477442

Not Available

10

VALVE TAPPET; GRADED 4.900

5138477490

Not Available

11

CAMSHAFT-INTAKE MACH

3022556

3023626

$388,49 Unit Price incl. VAT

12

EXHAUST VALVE

3022349

3022883

$125,99 Unit Price incl. VAT

13

VALVE SPRING SEAT WITH SEAL

3610212

3024576

Not Available

14

RETAINER VALVE

5138435

$47,24 Unit Price incl. VAT

15

RING-SNAP EXT 23MM

7710653

$6,29 Unit Price incl. VAT

16

SPRING VALVE

7043988

7046204

$18,89 Unit Price incl. VAT

17

VALVE KEEPER

7081470

$9,44 Unit Price incl. VAT

18

SCREW

7519153

$10,49 Unit Price incl. VAT

19

BOLT HEAD

7520144

$25,19 Unit Price incl. VAT

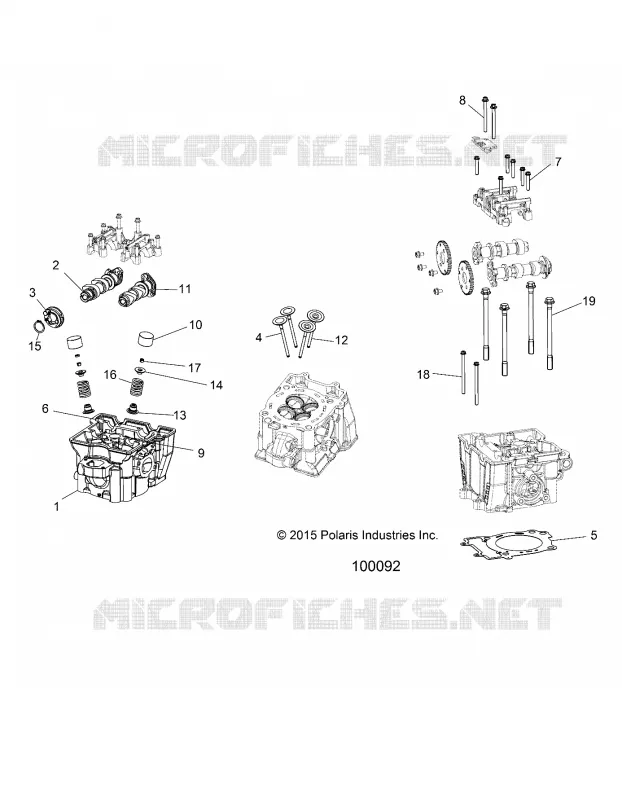

Find the detailed ENGINE, CYLINDER HEAD, CAMS AND VALVES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
