1
Engine displacement
autre
2
Year
1997
3
Trim
EURO ULTRA SPX SE - E975678
4
Parts Catalog

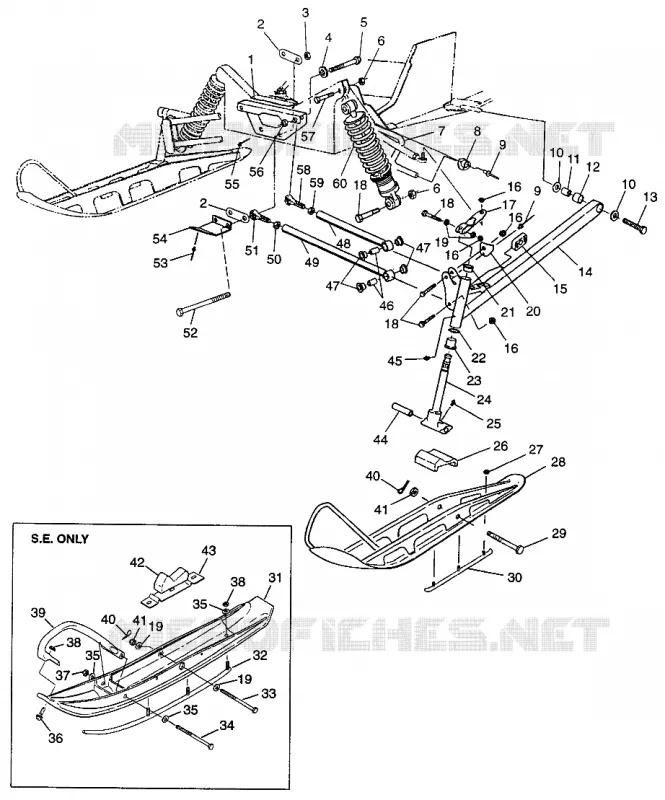

FRONT SUSPENSION AND SKI ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPE (4939533953B003)
5
Parts Diagram
Parts Catalog
CONTROLS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953B002)
by
DRIVE TRAIN ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX (4939533953B010)
FRONT SUSPENSION AND SKI ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPE (4939533953B003)
1
2
2
3
4
5
6
6
7
8
9
9
10
10
11
12
13
14
14
14
14
15
16
16
16
16
17
17
17
17
18
18
18
19
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
36
37
38
38
39
40
40
41
41
42
43
44
45
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
60
60
60
60
60
60
60
1
2
2
3
4
5
6
6
7
8
9
9
10
10
11
12
13
14
14
14
14
15
16
16
16
16
17
17
17
17
18
18
18
19
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
36
37
38
38
39
40
40
41
41
42
43
44
45
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
60
60
60
60
60
60
60
1
2
2
3
4
5
6
6
7
8
9
9
10
10
11
12
13
14
14
14
14
15
16
16
16
16
17
17
17
17
18
18
18
19
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
36
37
38
38
39
40
40
41
41
42
43
44
45
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
60
60
60
60
60
60
60
1
BRACE FR.BULKH. BLK Substituted by 5242112-067
5241641067
Not Available
2
STRAP SPACER BOTTOM
5211345
9999999
Not Available
3
NUT FLEXOC;
7542703
9999999
Not Available
4
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
5
BOLT
7512551
9999999
Not Available
6
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
7
BAR SWAY BLK
5224742067
Not Available
8
SWAY BAR BUSHING
5432038
9999999
Not Available
9
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
10
WASHER
7555721
$2,09 Unit Price incl. VAT
11
BUSHING TUBE
5010310
9999999
Not Available
12
RUBBER PIVOT
5410872
9999999
Not Available
13
BOLT
7512557
9999999
Not Available
14
ARM TRLG RH
1822450
9999999
Not Available
14
ARM;TRLG;LH
1822449
9999999
Not Available
15
SWAYBAR SLIDE; 5/8
5432331
9999999
Not Available
16
NUT; FLEXLOC B
7542456
9999999
Not Available
17
ARM RH STRG BLK.
5241661067
Not Available
17
ARM LH STRG BLK.
5241660067
Not Available
18
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
19
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
20
STOP RH STRG BLK.
5241778067
Not Available
20
STOP LH STRG BLK
5241777067
Not Available
21
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
22
BUSHING
7556509
$3,14 Unit Price incl. VAT
23
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
24
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
25
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
26
STOP; RUBBER
5411083
9999999
Not Available
27
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
28
SKI WELD
1820430067
Not Available
29
SCREW
7515462
9999999
Not Available
30
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
31
SKI ASMCOMP(PLASTIC)
1820506
9999999
Not Available
32
SKAG CARBIDE 3"OF120 DEGREE
2871815
9999999
Not Available
33
SCREW
7512596
9999999
Not Available
34
BOLT
7515514
$13,64 Unit Price incl. VAT
35
WASHER
7555832
$4,19 Unit Price incl. VAT
36
BOLT
7515307
$7,34 Unit Price incl. VAT
37
NUT; (SE)
7542443
9999999
Not Available
38
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
39
TOE PLASTIC SKI
5432209
5434165-070
$73,49 Unit Price incl. VAT
40
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
41
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
42
STOP RUBBER
5411094
5412018
$47,24 Unit Price incl. VAT
43
SUPPORT SKI RUBBER MEDIUM GLOSS BLACK
5241912067
Not Available
44
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
45
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
46
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
47
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
48
RODRADUPPERBLK
1822375067
Not Available
49
ROD RAD LOWER BLK
1822377067
Not Available
50
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
51
ROD END;1/2 LINED
7061011
7061071
$99,74 Unit Price incl. VAT
52
BOLT
7512678
$36,74 Unit Price incl. VAT
53
RIVET
7621452
9999999
Not Available
54
SUPPORT PANBRAKE LOW.
5240699067
Not Available
55
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
56
FLEX LOC NUT
7542507
9999999
Not Available
57
BOLT(10)
7515515
9999999
Not Available
58
ROD END 7/16 LINED
7061010
9999999
Not Available
59
NUT JAM(10)
7542520
9999999
Not Available
60
SPRING; FRONT; MEDIUM GLOSS BLACK
7041575067
Not Available
60
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
60
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

Find the detailed FRONT SUSPENSION AND SKI ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPE (4939533953B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for EURO ULTRA SPX SE - E975678

TUNNEL ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E9 (4939533953A005)

TUNNEL ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E9 (4939533953A005)

for EURO ULTRA SPX SE - E975678 from 1997

SEAT GAS TANK ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTR (4939533953A006)

SEAT GAS TANK ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTR (4939533953A006)

for EURO ULTRA SPX SE - E975678 from 1997

NOSEPAN ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E (4939533953A007)

NOSEPAN ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E (4939533953A007)

for EURO ULTRA SPX SE - E975678 from 1997

NOSEPAN ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E (4939533953A008)

NOSEPAN ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E (4939533953A008)

for EURO ULTRA SPX SE - E975678 from 1997

INSTRUMENTS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX (4939533953A014)

INSTRUMENTS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX (4939533953A014)

for EURO ULTRA SPX SE - E975678 from 1997

HOOD

HOOD

for EURO ULTRA SPX SE - E975678 from 1997

CONTROLS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953B002)

CONTROLS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953B002)

for EURO ULTRA SPX SE - E975678 from 1997

FRONT SUSPENSION AND SKI ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPE (4939533953B003)

FRONT SUSPENSION AND SKI ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPE (4939533953B003)

for EURO ULTRA SPX SE - E975678 from 1997

DRIVE TRAIN ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX (4939533953B010)

DRIVE TRAIN ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX (4939533953B010)

for EURO ULTRA SPX SE - E975678 from 1997

SUSPENSION ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX S (4939533953B011)

SUSPENSION ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX S (4939533953B011)

for EURO ULTRA SPX SE - E975678 from 1997

RAIL MOUNTING (SUSPENSION) ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EURO (4939533953B012)

RAIL MOUNTING (SUSPENSION) ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EURO (4939533953B012)

for EURO ULTRA SPX SE - E975678 from 1997

FRONT TORQUE ARM ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA (4939533953B013)

FRONT TORQUE ARM ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA (4939533953B013)

for EURO ULTRA SPX SE - E975678 from 1997

EXHAUST SYSTEM

EXHAUST SYSTEM

for EURO ULTRA SPX SE - E975678 from 1997

OIL TANK AIR BOX

OIL TANK AIR BOX

for EURO ULTRA SPX SE - E975678 from 1997

TOOL KIT/BOX

TOOL KIT/BOX

for EURO ULTRA SPX SE - E975678 from 1997

FOX SHOCK

FOX SHOCK

for EURO ULTRA SPX SE - E975678 from 1997

WATER PUMP

WATER PUMP

for EURO ULTRA SPX SE - E975678 from 1997

PISTON CRANKSHAFT

PISTON CRANKSHAFT

for EURO ULTRA SPX SE - E975678 from 1997

CARBURETOR ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX S (4939533953D001)

CARBURETOR ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX S (4939533953D001)

for EURO ULTRA SPX SE - E975678 from 1997

FUEL PUMP ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953D002)

FUEL PUMP ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953D002)

for EURO ULTRA SPX SE - E975678 from 1997

OIL PUMP ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953D003)

OIL PUMP ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953D003)

for EURO ULTRA SPX SE - E975678 from 1997

NOSEPAN FOIL ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX (4939533953A009)

NOSEPAN FOIL ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX (4939533953A009)

for EURO ULTRA SPX SE - E975678 from 1997

CONSOLE WIRE HARNESS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPE (4939533953A010)

CONSOLE WIRE HARNESS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPE (4939533953A010)

for EURO ULTRA SPX SE - E975678 from 1997

HOOD ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E975 (4939533953A011)

HOOD ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E975 (4939533953A011)

for EURO ULTRA SPX SE - E975678 from 1997

DECALS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E9 (4939533953A013)

DECALS ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E9 (4939533953A013)

for EURO ULTRA SPX SE - E975678 from 1997

STEERING

STEERING

for EURO ULTRA SPX SE - E975678 from 1997

STEERING ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953B006)

STEERING ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953B006)

for EURO ULTRA SPX SE - E975678 from 1997

BRAKE ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E97 (4939533953B007)

BRAKE ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E97 (4939533953B007)

for EURO ULTRA SPX SE - E975678 from 1997

CHAINCASE ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953B008)

CHAINCASE ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953B008)

for EURO ULTRA SPX SE - E975678 from 1997

COOLING SYSTEM ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA S (4939533953B009)

COOLING SYSTEM ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA S (4939533953B009)

for EURO ULTRA SPX SE - E975678 from 1997

REAR TORQUE ARM ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA (4939533953B014)

REAR TORQUE ARM ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA (4939533953B014)

for EURO ULTRA SPX SE - E975678 from 1997

DRIVE CLUTCH

DRIVE CLUTCH

for EURO ULTRA SPX SE - E975678 from 1997

DRIVEN CLUTCH

DRIVEN CLUTCH

for EURO ULTRA SPX SE - E975678 from 1997

ENGINE MOUNTING

ENGINE MOUNTING

for EURO ULTRA SPX SE - E975678 from 1997

FOX SHOCK

FOX SHOCK

for EURO ULTRA SPX SE - E975678 from 1997

FOX SHOCK

FOX SHOCK

for EURO ULTRA SPX SE - E975678 from 1997

CRANKCASE

CRANKCASE

for EURO ULTRA SPX SE - E975678 from 1997

CYLINDER

CYLINDER

for EURO ULTRA SPX SE - E975678 from 1997

MAGNETO ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E (4939533953D004)

MAGNETO ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE E (4939533953D004)

for EURO ULTRA SPX SE - E975678 from 1997

RECOIL STARTER ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA S (4939533953D005)

RECOIL STARTER ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA S (4939533953D005)

for EURO ULTRA SPX SE - E975678 from 1997

POLARIS EURO ULTRA SPX SE - E975678 1997

EURO ULTRA SPX SE - E975678

EURO ULTRA SPX SE - E975678

Model : OTHERS

Engine capacity : autre

Year : 1997

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
