IGNITION SYSTEM for POLARIS 550 LXT from 2016

IGNITION SYSTEM

1

SCREW AND WASHER ASSEMBLY

3085698

7517276

$13,64 Unit Price incl. VAT

2

FLYWHEEL

3089938

3023396

$794,84 Unit Price incl. VAT

3

STATOR CP

3090362

3023397

$637,13 Unit Price incl. VAT

4

ASM. SCREW AND WASHER(10)

3085697

9999999

Not Available

5

HARNESS UNIT

3090378

4017267

$152,24 Unit Price incl. VAT

6

CDI RT

3090390

9999999

Not Available

7

HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM

7519145

$7,34 Unit Price incl. VAT

8

JUMPER-STUBBER W/ES

2461060

$15,74 Unit Price incl. VAT

9

CLIP-T DUAL 3/16 LINE

7080816

9999999

Not Available

10

FLANGE BOLT

3086751

9999999

Not Available

11

IGNITION COIL ASSEMBLY

3090363

4017264

$362,24 Unit Price incl. VAT

12

SPARK PLUG CAP

3086976

4017264

$362,24 Unit Price incl. VAT

13

SPARKPLUG CAP SEAL

3090389

5416453

$34,64 Unit Price incl. VAT

14

SPARK PLUG(4)

3070163

$7,34 Unit Price incl. VAT

15

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

16

NYLON WASHER

7555932

$4,19 Unit Price incl. VAT

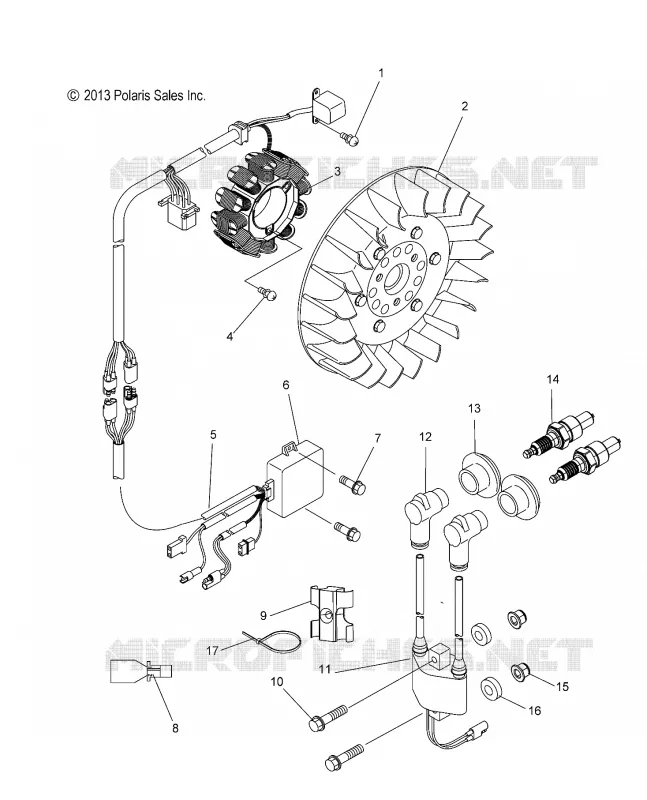

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
