ENGINE, CARBURETOR AND CHOKE for POLARIS 550 INDY from 2018

ENGINE, CARBURETOR AND CHOKE

1

TOP ASSEMBLY; MIXING CHAMBER

3130184

$68,24 Unit Price incl. VAT

2

SPRING THROTTLE

3130439

$27,29 Unit Price incl. VAT

3

THROTTLE PLATE

3130027

$19,94 Unit Price incl. VAT

4

E-RING

3130508

$12,59 Unit Price incl. VAT

5

JET NEEDLE J8-6BGY48

3131703

$83,99 Unit Price incl. VAT

6

THROTTLE VALVE 3.0

3131763

$209,99 Unit Price incl. VAT

7

NEEDLE JET

3130964

$89,24 Unit Price incl. VAT

8

VALVE CHECK ASSEMBLY

3086785

7051020

$68,24 Unit Price incl. VAT

9

CAP

3130479

$31,49 Unit Price incl. VAT

10

CARBURETOR ASSEMBLY; INDY

3131767

$1 034,24 Unit Price incl. VAT

11

NEEDLE VALVE PACKING

3130017

$7,34 Unit Price incl. VAT

12

FLOAT PIN

3130361

$18,89 Unit Price incl. VAT

13

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

14

NEEDLE VALVE; 1.5

3131146

$99,74 Unit Price incl. VAT

15

FLOAT CHAMBER GASKET

3130020

$31,49 Unit Price incl. VAT

16

CAP

3130237

$8,39 Unit Price incl. VAT

17

FLOAT ASSEMBLY

3130430

$73,49 Unit Price incl. VAT

18

WASHER

3130014

$3,14 Unit Price incl. VAT

19

JET MAIN #220

3130428

3130125

$12,59 Unit Price incl. VAT

20

O-RING

3130239

9999999

Not Available

21

NIPPLE

3130573

$68,24 Unit Price incl. VAT

22

ASM. SCREW & WASHER(10)

3130025

$6,29 Unit Price incl. VAT

23

WATERTRAP HOSE; 5/16; 45 DEGREE

5413396

$27,29 Unit Price incl. VAT

24

PLUG TRAP

5431893

$26,24 Unit Price incl. VAT

25

HOSE CLAMP

7080534

$3,14 Unit Price incl. VAT

26

JET PILOT #45(10)

3130068

$18,89 Unit Price incl. VAT

27

THROTTLE SPRING

3131764

$18,89 Unit Price incl. VAT

28

GUIDE HOLDER

3130199

$52,49 Unit Price incl. VAT

29

HOSE

3090196

$52,49 Unit Price incl. VAT

30

SCREW THROTTLE STOP

3130437

9999999

Not Available

31

SPRING

3130010

$18,89 Unit Price incl. VAT

32

PLUNGER ASSEMBLY

3130328

$68,24 Unit Price incl. VAT

33

WASHER-LOCK

7571610

$7,34 Unit Price incl. VAT

33

CHOKE CONTROL KIT

2200188

$52,49 Unit Price incl. VAT

33

CHOKE CONTROL CABLE

7081812

$89,24 Unit Price incl. VAT

33

NUT-CHOKE SLIDE

7080229

$36,74 Unit Price incl. VAT

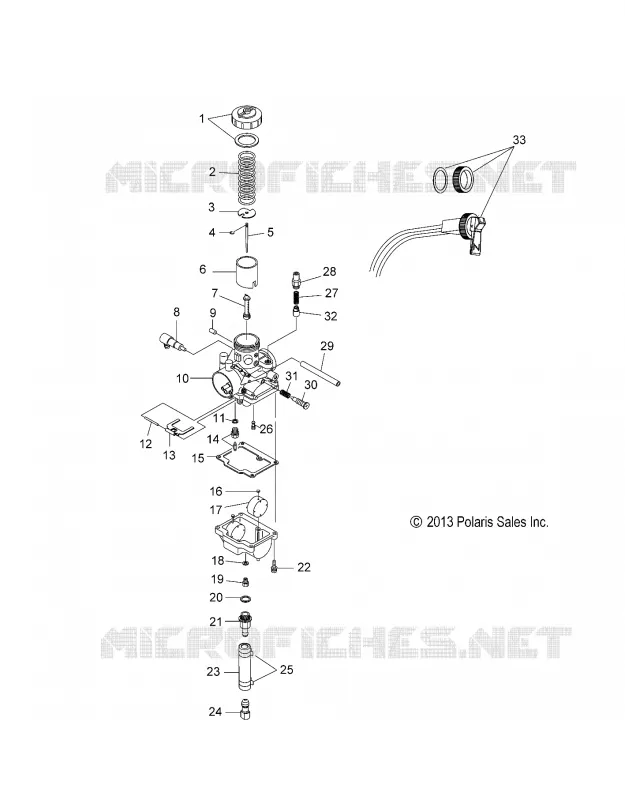

Find the detailed ENGINE, CARBURETOR AND CHOKE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
