Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN 570 EFI UTE TRACTOR
4
Parts Catalog
REAR BOX
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR CONTROLS
by
REAR BOX FRAME AND PIVOT
REAR BOX
1
2
2
3
3
4
4
5
5
5
5
6
7
8
8
8
8
9
9
10
10
11
12
13
1
FENDER; REAR; RIGHT; SB GRN MTLC
5450716498
Not Available
2
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
3
SCREW
7517386
$2,09 Unit Price incl. VAT
4
SIDE TIEDOWN; GLOSS BLACK
5434803070
Not Available
5
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
6
FOIL-BOX
5813012
9999999
Not Available
7
BOX; REAR; BASE; GLOSS BLACK
5450946070
Not Available
8
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
9
CHANNEL-REAR RACK;FRT;MAT BLK
5248471458
Not Available
10
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
11
REAR BOX FENDER; LEFT; SB GRN MTLC
5450715498
Not Available
12
PLUG-DRAIN BOX
5413002
$52,49 Unit Price incl. VAT
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT

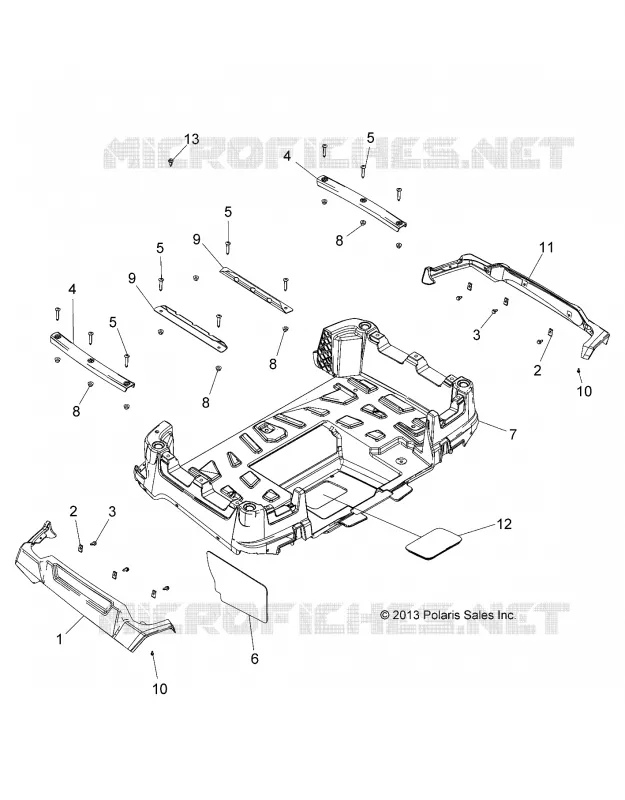

Find the detailed REAR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
