ELECTRICAL/TAILLIGHT for POLARIS XPEDITION 325 - A00CK32AB from 2000

ELECTRICAL/TAILLIGHT

1

HARNESS MAINWIRE 325 XPD (If built after 1/01/00)

2460849

Not Available

1

HARNESS-MAINWIRE 325 XPED (If built before 1/01/00)

2460798

Not Available

2

FAN CIRCUIT BREAKER KIT

2201795

9999999

Not Available

3

TAILLIGHT ASSEMBLY

2432034

9999999

Not Available

4

TAIL LIGHT LENS

4032046

$62,99 Unit Price incl. VAT

5

SCREW

4032029

$9,44 Unit Price incl. VAT

6

BULB (10)

4030043

$12,59 Unit Price incl. VAT

7

GASKET

4032045

$7,34 Unit Price incl. VAT

8

BACKING TAILLIGHT

4032064

9999999

Not Available

9

PUSH-ON NUT

7670054

$2,09 Unit Price incl. VAT

10

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

11

WASHER

7571602

$9,44 Unit Price incl. VAT

12

SCREW

7512027

$2,09 Unit Price incl. VAT

13

BATTERY PAD

5810290

5810290-CO

$13,64 Unit Price incl. VAT

14

KIT-BATTERY BOLT (SHORT)

2200361

9999999

Not Available

15

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

16

BATTERY STRAP HOOK

7010032

9999999

Not Available

17

STRAP BATTERY HOLDDOWN

5410424

5418182

$9,44 Unit Price incl. VAT

18

VENT TUBE

5432077

9999999

Not Available

19

BATTERY; 195 COLD CRANK AMPS

4140006

$136,49 Unit Price incl. VAT

20

CLIP

7670102

$4,19 Unit Price incl. VAT

21

CABLE CLAMP

7080367

$4,19 Unit Price incl. VAT

22

BATTERY COVER

5431769

$29,39 Unit Price incl. VAT

23

CABLE BATT/SOLENOID RED

4010094

9999999

Not Available

24

CABLE; SOL/STARTER

4010093

$89,24 Unit Price incl. VAT

25

SINK HEAT

5132214

9999999

Not Available

26

RECTIFIER/REGULATOR LR-35

4060191

9999999

Not Available

27

SWITCH-HUB SAFETYLR-84

4010285

9999999

Not Available

28

ROSEBUD CLIP

4020149

$12,59 Unit Price incl. VAT

29

ROUTING CLIP

7670109

$4,19 Unit Price incl. VAT

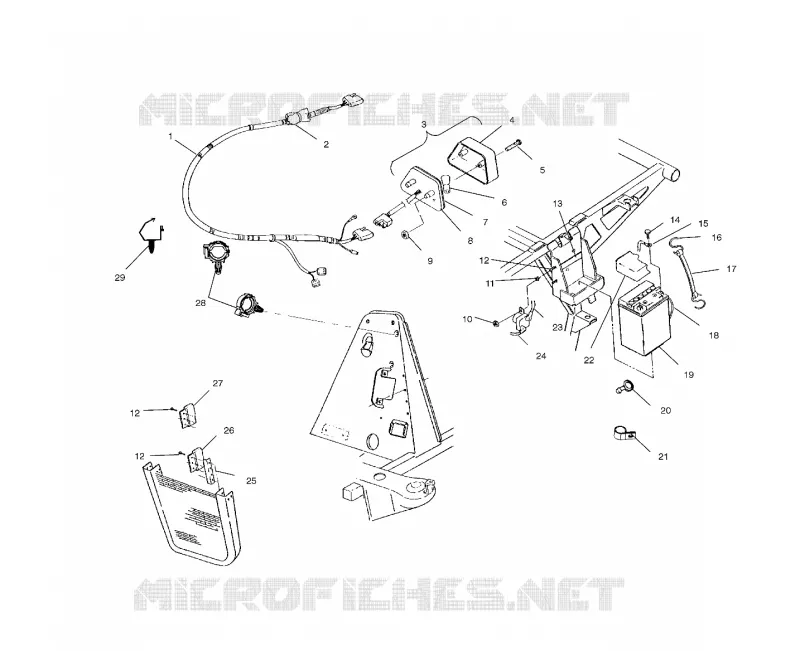

Find the detailed ELECTRICAL/TAILLIGHT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
