1
Engine displacement
500
2
Year
1996
3
Trim
500 CARB RMK - 0962964
4
Parts Catalog
REAR TORQUE ARM 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB (4931873187C005)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS (4931873187B012)
by
DRIVE CLUTCH ASSEMBLY 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS (4931873187C006)
REAR TORQUE ARM 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB (4931873187C005)
1
BOLT NYLOC BLACK
7515493
9999999
Not Available
2
SHAFT R.TORQUE UPPER
5020845
9999999
Not Available
3
ARMR.TORQUEBLK
1541024067
Not Available
4
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
5
SHAFT LOW RR TORQUE
5020843
9999999
Not Available
6
EYE BOLT
7010050
9999999
Not Available
7
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
8
LOCK;BOLT;MECHANICAL
5211649
9999999
Not Available
9
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
10
ROLLER SPRING ADJUSTED
5431168
9999999
Not Available
11
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
12
COLLAR-BRG. LOCK
5010155
9999999
Not Available
13
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
14
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
15
CARRIER WHEEL
1543023
9999999
Not Available
16
TORISON SPRING; RIGHT; .421 DIA
7041462067
Not Available
16
SPRING LH TORS(.406DIA)
7041463067
Not Available
16
SPRING RH TORS(.406DIA)
7041464067
Not Available
16
SPRING LH TORS(.421DIA)
7041461067
Not Available
17
BUSHING
7556509
$3,14 Unit Price incl. VAT
18
TORSION SPRING SLEEVE
5431923
9999999
Not Available
19
BOLT
7515307
$7,34 Unit Price incl. VAT
20
WASHER
7555716
$3,14 Unit Price incl. VAT
21
STRAP-LIMITER RR SA
5411062
9999999
Not Available
21
STRAP LIMITER
5411061
9999999
Not Available
22
PIVOT TUBE BUSHING
5020561
9999999
Not Available
23
NUT FLEXLOC
7542402
9999999
Not Available
24
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
25
SPACER
5333420
9999999
Not Available
26
ROD SHOCK (XTRA 10)133
1541021067
Not Available
27
SPACER
5333028
9999999
Not Available
28
SCREW
7512463
9999999
Not Available
29
NUT FLEX-LOC
7542303
9999999
Not Available
30
BUSHING
5430537
$7,34 Unit Price incl. VAT
31
BUSHING R.SHOCK
5333030
9999999
Not Available
32
BOLT
7512329
$7,34 Unit Price incl. VAT
33
SHOCK GAS R.TRACK
7041438
9999999
Not Available
34
BUSHING 1.40
5020657
9999999
Not Available
35
BUSHING SHOCK .340
5431542
9999999
Not Available

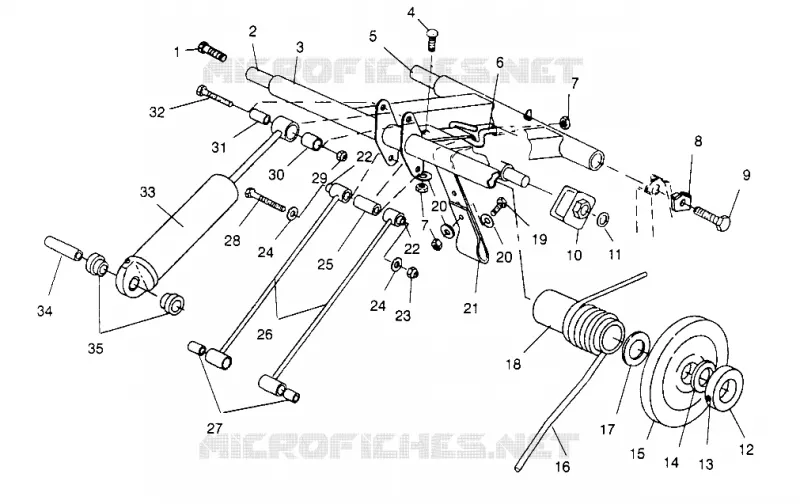

Find the detailed REAR TORQUE ARM 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB (4931873187C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
