Engine displacement
500
2
Year
2011
3
Trim
RANGER 4X4 500 EFI - R11RH50AG/AH/AR
4
Parts Catalog
BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
ELECTRICAL, INSTRUMENTS CONTROLS
BATTERY
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
1
STARTER SOLENOID
4012001
4081641
$59,84 Unit Price incl. VAT
2
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
5
SOLENOID TO STARTER CABLE
4012340
9999999
Not Available
6
TERMINAL BLOCK; 3 POST
4011892
$62,99 Unit Price incl. VAT
7
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
8
TUBE-BATTERY VENT;305MM
5435030
$9,44 Unit Price incl. VAT
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
11
BATTERY STRAP BRACKET
5253552
9999999
Not Available
12
14AH DRY BATTERY WITHOUT ACID
4012622
4010774
$178,49 Unit Price incl. VAT
13
BATTERY BOX
5434037
$47,24 Unit Price incl. VAT
14
CABLE-BATT TO SOLENOID/TERMINA
4011497
$83,99 Unit Price incl. VAT
15
SPLIT GROUND CABLE
4012339
9999999
Not Available
16
KIT-BATTERY BOLT;14AH;RANGER
2204132
$40,94 Unit Price incl. VAT

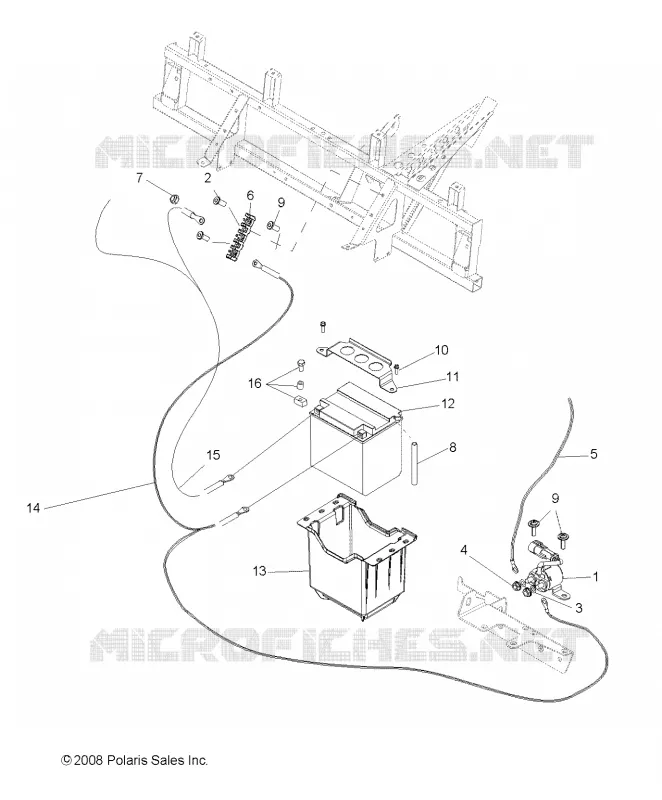

Find the detailed BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
