REAR TORQUE ARM for POLARIS 340 INDY / CLASSIC from 2004

REAR TORQUE ARM

1

WELD-RTA EDGE COMP YLW

1541969216

Not Available

1

TORQUE ARM WELD; REAR; GS BLK

1541969067

Not Available

2

FLEXLOC NUT

7542411

$6,29 Unit Price incl. VAT

3

SCREW

7512410

7515540

$9,44 Unit Price incl. VAT

4

THRUST WASHER

7555945

$11,54 Unit Price incl. VAT

5

ARM SHAFT

5333758

9999999

Not Available

6

BUSHING

3514331

$34,64 Unit Price incl. VAT

7

SCREW

7515415

9999999

Not Available

8

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

9

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

10

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

11

SCREW

7517435

$22,56 Unit Price incl. VAT

12

ARM ASSEMBLY; 2.00

1541967

9999999

Not Available

13

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

14

SPACER WHEEL

5132388

9999999

Not Available

15

CARRIER WHEEL ASSEMBLY

1590343

$141,74 Unit Price incl. VAT

16

WASHER THRUST

7555787

9999999

Not Available

17

TORSION SPRING SLEEVE

5431923

9999999

Not Available

18

ROLLER SPRING ADJ SQUARE

5432983

$19,94 Unit Price incl. VAT

19

PUSH ON CLIP

7080394

$4,19 Unit Price incl. VAT

20

SPRING TORSION .359/77 RH BLK

7041630067

Not Available

20

SPRING TORSION .359/77 LH BLK

7041629067

Not Available

20

SPRING-TORS.375SQ/77 ;RH;BLK

7041943067

Not Available

20

SPRING-TORS.375SQ/77 LHBLK

7041942067

Not Available

21

SCREW

7517232

$36,74 Unit Price incl. VAT

22

SHAFT .740X.390X7.055 6066

5333873

9999999

Not Available

23

BOLT

7515514

$13,64 Unit Price incl. VAT

24

WAVE SPRING WASHER

7555795

$2,09 Unit Price incl. VAT

25

BUSHING .378 X .616 X 1.12

5132391

$13,64 Unit Price incl. VAT

26

ROD SHOCK

1541479067

Not Available

27

SCREW-3/8-24X3.75-HX/P-80-GR8Y

7517851

$11,54 Unit Price incl. VAT

28

BUSHING NUT; .616 X 1.12 X .875

5132390

$40,94 Unit Price incl. VAT

29

SLEEVE; .385 X .560 X 1.30

5333907

9999999

Not Available

30

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

31

SPACER .397X.562X1.250

5333904

9999999

Not Available

32

REAR TRACK SHOCK

7041920

$325,49 Unit Price incl. VAT

33

BUSHING

5010422

$18,89 Unit Price incl. VAT

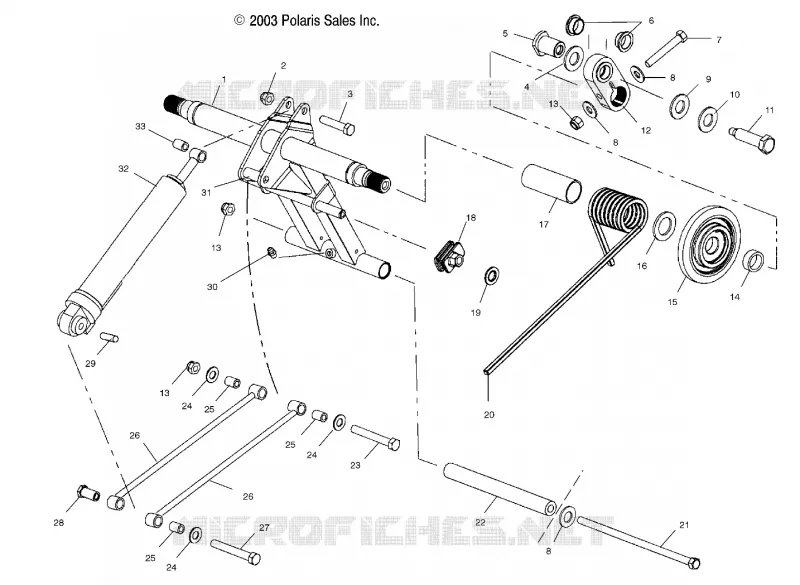

Find the detailed REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
