BODY, FRONT CAB & SIDE PANELS for POLARIS SPORTSMAN 570 EPS TRACTOR from 2019

BODY, FRONT CAB & SIDE PANELS

1

ASM-CAB FR SVC TRG EU I.RED

2636211293

Not Available

1

ASM-CAB FR SVC TRG EU V.BLUE

2636211689

Not Available

1

ASM-CAB FR SVC TRG EU S.GRN

2636211498

Not Available

2

SIDE PANEL; LEFT; INDY RED

5450521293

Not Available

2

SIDE PANEL; LEFT

5450521498

Not Available

2

SIDE PANEL; LEFT; VELOCITY BLUE

5450521689

Not Available

3

COVER; FRONT; SAGEBRUSH GREEN METALLIC

5439069498

Not Available

3

COVER; FRONT; INDY RED

5439069293

Not Available

3

HDPE COVER; FRONT; VELOCITY BLUE

5439069689

Not Available

4

SHIELD PANEL ASSEMBLY; RIGHT

2636441498

Not Available

4

SHIELD PANEL ASM RIGHT VELOCITY BLUE

2636441689

Not Available

4

PANEL/SHIELD ASSEMBLY; RIGHT; INDY RED

2636441293

Not Available

5

COMPARTMENT PLUG

5412981

5418084

$6,29 Unit Price incl. VAT

6

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

7

FLAT WASHER

7555859

$2,09 Unit Price incl. VAT

8

PLUG MOUNT BRACKET

5258497

$10,49 Unit Price incl. VAT

9

CARRIAGE BOLT

7512193

$4,19 Unit Price incl. VAT

10

FLAT WASHER

7555960

$7,34 Unit Price incl. VAT

11

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

12

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

13

BOLT

7512232

$2,09 Unit Price incl. VAT

14

BULB SEAL .375 350 CM

5521697350

Not Available

15

SCREW

7515399

9999999

Not Available

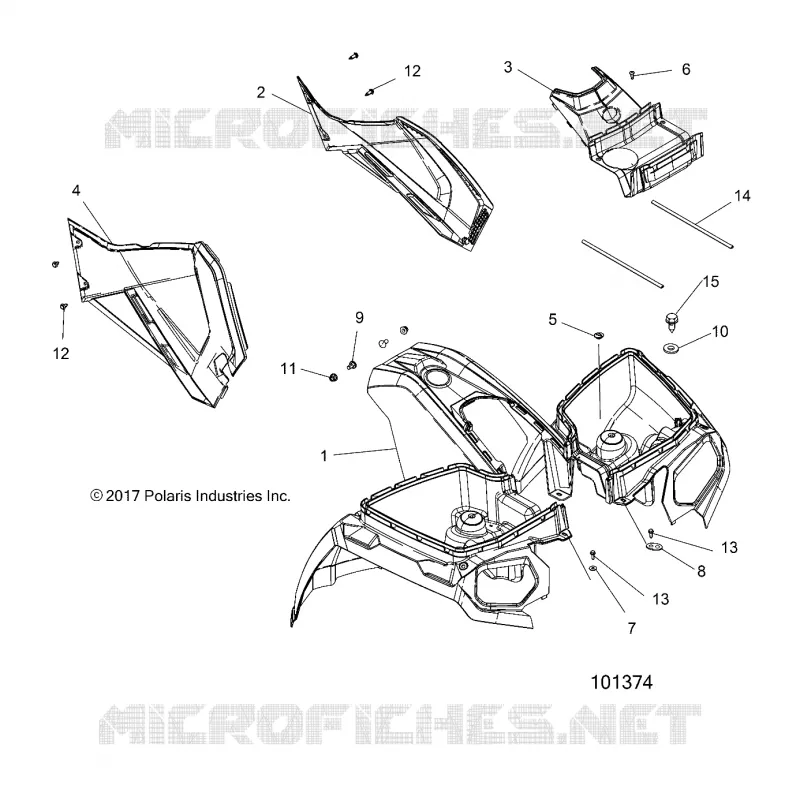

Find the detailed BODY, FRONT CAB & SIDE PANELS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
