MIDDLE FAIRING for POLARIS PATRIOT 9R RMK PRO SLASH 163/165 from 2023

DECALS, BLACK SIDE PANEL W/SPIRIT BLUE ACCENT

MIDDLE FAIRING

1

ASM-CONSOLE

2637769

2640260

$285,06 Unit Price incl. VAT

2

SCR-TXTH-M6X1.0X20 T40 ZPB

7519112

$6,29 Unit Price incl. VAT

3

BULB SEAL .375 350 CM

5521697350

Not Available

4

TRIM-CONSOLE LH IN-MLD WHTLGHT

5456441599

Not Available

4

TRIM-CONSOLE LH ORANGE BURST

5457070647

Not Available

4

TRIM-CONSOLE LH IN-MLD CRSRBLK

5456441266

Not Available

4

TRIM-CONSOLE LH IN-MLD VELBLUE

5456441689

Not Available

5

NUT-FILLER NECK

5435156

$9,44 Unit Price incl. VAT

6

PANEL-CONSOLE SWITCH

5457421

$52,49 Unit Price incl. VAT

7

1/4 TURN CLIP; 6 MM

7710808

$9,44 Unit Price incl. VAT

8

FOAM-CONSOLE LH UPPER

5815171

$9,44 Unit Price incl. VAT

9

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

10

CLOSEOFF-CONSOLE

5458024

$10,49 Unit Price incl. VAT

11

FOAM-CONSOLE RH UPPER

5815172

$10,49 Unit Price incl. VAT

12

VENT-CONSOLE

5457168

$36,74 Unit Price incl. VAT

13

ASM-POCKET RECOIL

2638450

2640259

$45,14 Unit Price incl. VAT

14

SCR-TXPH-M6X1.0X45 8.8 ZBLK

7520466

$10,49 Unit Price incl. VAT

15

ROLLER-RECOIL

5435390

$26,24 Unit Price incl. VAT

16

BUSHING-ROLLER M6

5143683

$6,29 Unit Price incl. VAT

17

HEX FLANGE NUT; 6 MM X 1.0 MM

7547453

$7,34 Unit Price incl. VAT

18

TRIM-CONSOLE RH IN-MLD VELBLUE

5456442689

Not Available

18

TRIM-CONSOLE RH IN-MLD CRSRBLK

5456442266

Not Available

18

TRIM-CONSOLE RH IN-MLD WHTLGHT

5456442599

Not Available

18

TRIM-CONSOLE RH ORANGE BURST

5457071647

Not Available

19

BOLT RETAINER; 1/4 -20

7670154

$2,09 Unit Price incl. VAT

20

FOAM-CONSOLE RH

5815170

$36,74 Unit Price incl. VAT

21

FOAM-CONSOLE UPPER LH

5815236

$36,74 Unit Price incl. VAT

22

FOAM-CONSOLE LOWER LH

5815235

$18,89 Unit Price incl. VAT

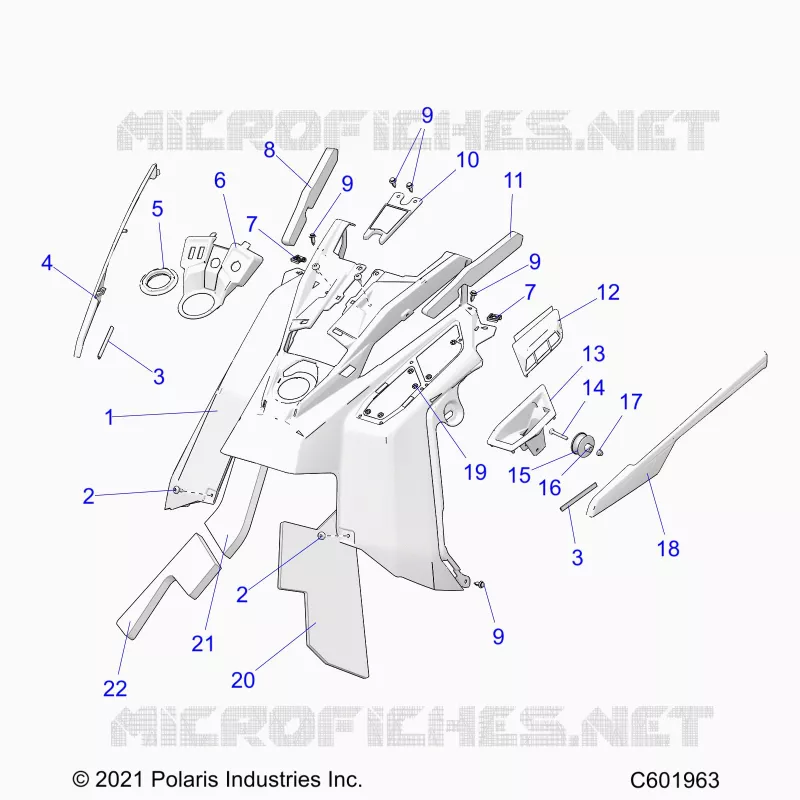

Find the detailed MIDDLE FAIRING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
