FRONT RACK and SUPPORTS for POLARIS SPORTSMAN XP 850 - A10ZN85AL/AQ/AX from 2010

FRONT RACK and SUPPORTS

1

FRONT RACK; GLOSS BLACK

5436865070

Not Available

2

LNR ANCHOR HANDLE; BLACK

5438117

$10,49 Unit Price incl. VAT

3

DOWEL PIN; 5/32 IN X 7/8 IN

7661970

$3,14 Unit Price incl. VAT

4

SHAFT-LNR ANCHOR;BLK

5438118

5138410

$9,44 Unit Price incl. VAT

5

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

6

LOCK AND RIDE ANCHOR SPACER

5521796

9999999

Not Available

7

RUBBER BUSHING; LNR ANCHOR

5413887

$6,29 Unit Price incl. VAT

8

RACK SUPPORT; CAST

5632355

$125,99 Unit Price incl. VAT

9

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

10

SCR-M6X1X60 TX TR BLK

7518882

$7,34 Unit Price incl. VAT

11

GUIDE-RACK L&R

5438790

$6,29 Unit Price incl. VAT

12

SUPPORT RACK TUBE; FRONT; UPPER

5335352

$136,49 Unit Price incl. VAT

13

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

14

BULKHEAD

5632354

$149,09 Unit Price incl. VAT

15

NUT-M8X1.25 HXFLG NYLON INS

7547317

7548028

$5,24 Unit Price incl. VAT

16

BOLT-M8X1.25X65 HXFLG

7518816

$7,34 Unit Price incl. VAT

17

HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM

7518450

$3,14 Unit Price incl. VAT

18

RADIATOR SUPPORT; CAST

5632356

$89,24 Unit Price incl. VAT

19

SUPPORT RACK; FRONT

5632357

$20,99 Unit Price incl. VAT

20

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519156

$3,14 Unit Price incl. VAT

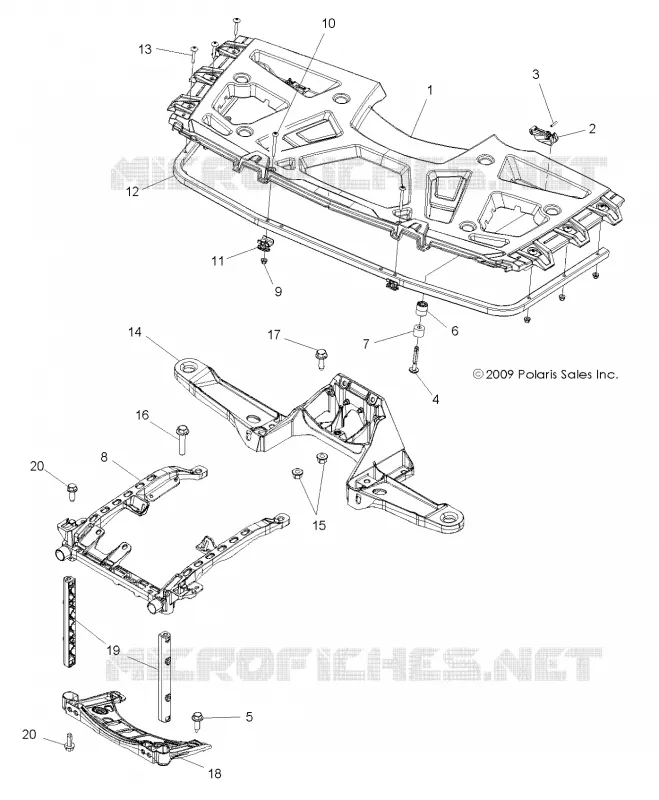

Find the detailed FRONT RACK and SUPPORTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
