Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATE
5
Parts Diagram
Parts Catalog
BRAKE LINES AND MASTER CYLINDER
by
DRIVE TRAIN, CLUTCH COVER AND DUCTING
CHASSIS, MAIN FRAME AND SKID PLATE
8
8
9
10
11
11
12
13
14
15
16
17
17
8
9
10
11
12
13
14
15
16
1
MAIN FRAME WELD REAR MATTE BLACK
1018109458
Not Available
2
WELD-BRACE BOLT IN REAR BLK
1018959329
Not Available
3
SKID PLATE; FRONT; PLASTIC; GLOSS BLACK
5438909070
Not Available
4
BUMPER SUPPORT WELD REAR MATTE BLACK
1017473458
Not Available
5
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
6
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
7
FRONT BUMPER SUPPORT; MATTE BLACK
1017471458
Not Available
8
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
9
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT
10
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
11
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
12
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
13
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
14
SKID PLATE; REAR; PLASTIC; GLOSS BLACK
5438911070
Not Available
15
FRAME WELD FRONT MATTE BLACK RZR XP 4
1018110458
Not Available
16
BRKT-CPLR FRAME EXT SIDE M BLK
5253873458
Not Available
17
SCREW
7516732
$3,14 Unit Price incl. VAT

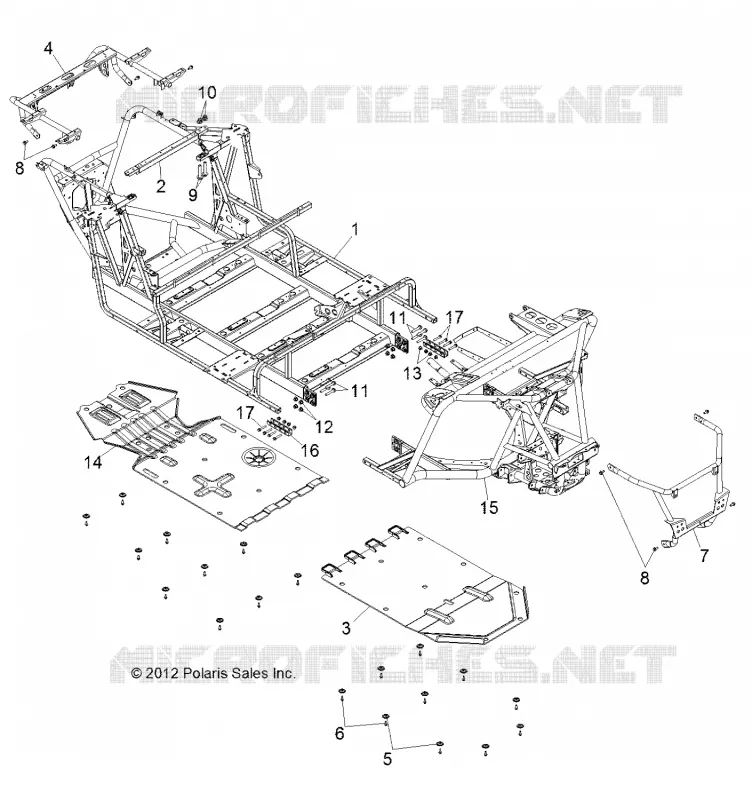

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
