CHAINCASE ASSEMBLY CLASSIC 0952865 (4929072907B009) for POLARIS CLASSIC

COOLING SYSTEM CLASSIC 0952865 (4929072907B008)

DRIVE TRAIN ASSEMBLY CLASSIC 0952865 (4929072907B010)

CHAINCASE;TOP MT;VENTED MACH

5131055

9999999

Not Available

OIL SEAL

3610030

$36,74 Unit Price incl. VAT

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

SCREW(10)

7515511

$7,34 Unit Price incl. VAT

NUT

7542404

$3,14 Unit Price incl. VAT

BEARING; 205 WITHOUT SEAL

3514304

$27,29 Unit Price incl. VAT

RETAINING RING

7718406

$11,54 Unit Price incl. VAT

WASHER THRUST

7555876

9999999

Not Available

SPACER SPROCKET

5010270

9999999

Not Available

SPROCKET 21 T

3221035

9999999

Not Available

WASHER SPRING

7571620

$13,64 Unit Price incl. VAT

WASHER

7555863

$4,19 Unit Price incl. VAT

SLOTTED NUT

7542810

$5,76 Unit Price incl. VAT

COTTER PIN

7661401

$1,56 Unit Price incl. VAT

BLOCK TIGHTENER

5630122

9999999

Not Available

TIGHTENER ASMGEARCASE

1332096

9999999

Not Available

WHEEL C/C IDLER

5630123

9999999

Not Available

BEARING

3553002

9999999

Not Available

THRUST WASHER

7558702

$3,14 Unit Price incl. VAT

PIN CHAIN TIGHTENER

7662210

9999999

Not Available

CHAINCASE GASKET

5410277

9999999

Not Available

PLUG(10) 1/2-14 NPT

7051520

$15,74 Unit Price incl. VAT

COVER;CH.CASE;REV.MACH.

5131114

5131753

Not Available

BRKTCABLE MOUNT

5222502067

Not Available

SCREW

7512252

9999999

Not Available

WASHER WROUGHT

7558403

$9,44 Unit Price incl. VAT

SCREW

7512497

9999999

Not Available

SCREW

7511909

9999999

Not Available

WASHER FLAT

7558201

$9,44 Unit Price incl. VAT

NUT-WELL

7541918

9999999

Not Available

PLUG DRAIN (10)

7052053

9999999

Not Available

SCREW

7512242

$4,19 Unit Price incl. VAT

OIL SEAL

3610029

9999999

Not Available

SHAFT SHIFT

1341093067

Not Available

SPRING REV.CABLE TENSION

7042044

9999999

Not Available

CLEVIS

5222606

9999999

Not Available

CLEVIS PIN

7661830

$7,34 Unit Price incl. VAT

PIN-COTTER(10)

7661205

$1,56 Unit Price incl. VAT

RING RETAINER

7710415

9999999

Not Available

PIN; DOWEL

7661826

9999999

Not Available

KIT SHIFT FORK/SHAFT

2200363

9999999

Not Available

SHIFT FORK

5130805

9999999

Not Available

SCREW NYLOK

7515348

9999999

Not Available

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

RETAINER DRIVE COUPLER

5130727

9999999

Not Available

SPRING; COMPRESSION

7041309

9999999

Not Available

GEAR ASMREVERSE

1341121

9999999

Not Available

COUPLER DRIVE

5130720

9999999

Not Available

CHAIN 66 PITCH

3224024

9999999

Not Available

O-RING

5410589

9999999

Not Available

WASHER THRUST

7555877

$14,69 Unit Price incl. VAT

PINION GEAR ASSEMBLY

1341075

9999999

Not Available

GEAR ASM PINION

1341076

9999999

Not Available

SPROCKET 39T

1341053

Not Available

WASHER

7555871

9999999

Not Available

SHAFT PINION

5130728

9999999

Not Available

SCREW

7512019

9999999

Not Available

BRKT CHAIN RETENTION

5222298

9999999

Not Available

SCREW; CARRIAGE

7515477

9999999

Not Available

PLUG

7052115

$10,49 Unit Price incl. VAT

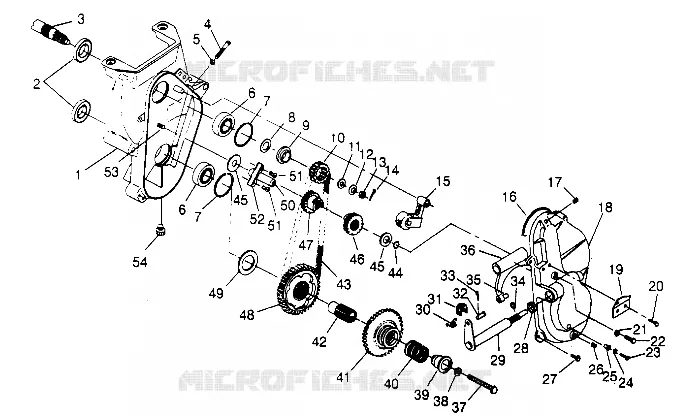

Find the detailed CHAINCASE ASSEMBLY CLASSIC 0952865 (4929072907B009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
