1
Engine displacement
760
2
Year
2012
3
Trim
RZR S INTL/ISRAEL - R12VE76FX/FI
4
Parts Catalog
REAR RACK and FENDERS
5
Parts Diagram
Parts Catalog
FLOOR ROCKER PANELS
by
SEAT ASM.
REAR RACK and FENDERS
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
27
28
29
29
1
FENDER FLAIR; REAR; RIGHT; GLOSS BLACK
5437662070
Not Available
2
FENDER; REAR; RIGHT
5437474070
Not Available
3
RACK ASSEMBLY; REAR; GLOSS BLACK
2634121070
Not Available
4
FENDER; REAR; LEFT; GLOSS BLACK
5437472070
Not Available
5
FENDER FLAIR REAR LEFT SIDE GLOSS BLACK
5437661070
Not Available
6
TIE-DOWN RACK BRACKET; LEFT; GLOSS BLACK
5436849070
Not Available
7
TIE DOWN RACK BRACKET RIGHT GLOSS BLACK
5436850070
Not Available
8
DIVIDER PANEL; REAR; LEFT; GLOSS BLACK
5438336070
Not Available
9
REAR CLOSE-OFF PANEL; GLOSS BLACK
5438335070
Not Available
10
PANEL DIVIDER; REAR; RIGHT; GLOSS BLACK
5438957070
Not Available
11
RACK SUPPORT WELD; REAR; BLACK
1015565329
Not Available
12
SCREW
7517561
$3,14 Unit Price incl. VAT
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
14
SCREW
7517230
$2,09 Unit Price incl. VAT
15
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
16
FOAM-SOUND ATTN;CUT
5813658
9999999
Not Available
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
WASHER
7555919
$7,34 Unit Price incl. VAT
19
LATCH 1/4 TURN
7081500
$10,49 Unit Price incl. VAT
20
SCREW
7517685
$3,14 Unit Price incl. VAT
21
BOLT-5/16-18X2.25 FLG TAP/R-M
7518382
9999999
Not Available
22
SHIELD PLATE BOX
5256351
9999999
Not Available
22
SHIELD-BOX
5251419
9999999
Not Available
23
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
24
TIEDOWN RING
7081195
$20,99 Unit Price incl. VAT
25
SEATBELT BUCKLE COVER; REAR
5813553
$62,99 Unit Price incl. VAT
26
SCREW
7517686
$3,14 Unit Price incl. VAT
27
U-TYPE NUT; 1/4-20
7670145
9999999
Not Available
28
FOIL-RH PANEL
5813380
9999999
Not Available
29
SCREW 1/4-20 TORX
7518375
$2,09 Unit Price incl. VAT

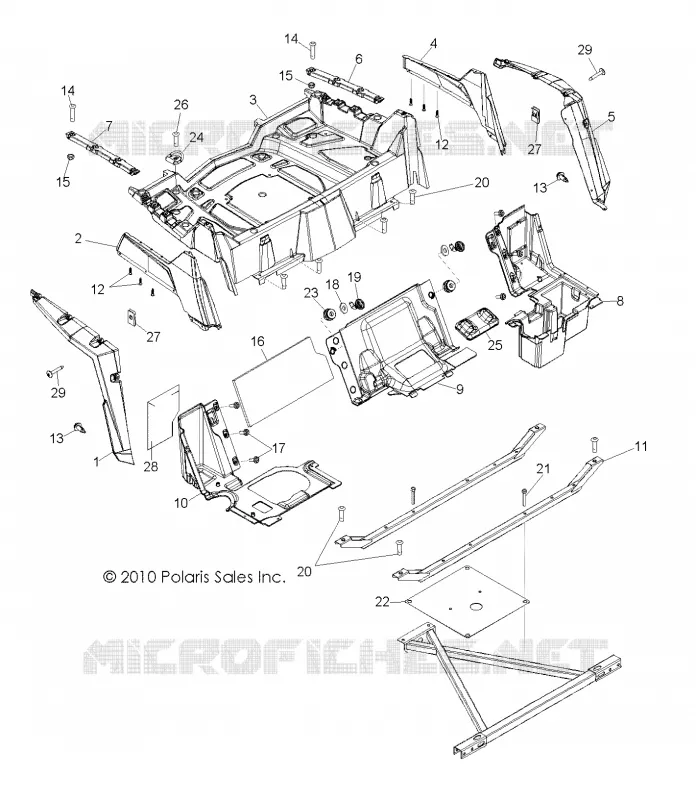

Find the detailed REAR RACK and FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
