Engine displacement
500
2
Year
2001
3
Trim
SCRAMBLER 500 4X4 - A01BG50AB
4
Parts Catalog
FOX SHOCK, GAS, RESERVOIR
5
Parts Diagram
Parts Catalog
GEAR SELECTOR
by
SHOCK VALVING
FOX SHOCK, GAS, RESERVOIR
-
SHOCK-REAR MONOGASCH19.08LG
7041867
9999999
Not Available
1
O-RING INNER
1500021
9999999
Not Available
2
O-RING; .103 X 1.299
1500020
9999999
Not Available
3
WIPER INNER
1500025
1500266
$52,49 Unit Price incl. VAT
4
WIPER CLR OUTER
1500024
5433298
$23,09 Unit Price incl. VAT
5
SCREW-#8-32X.375 800-10-002
1500287
9999999
Not Available
6
O-RING OUTER
1500023
9999999
Not Available
6
SCREW
1500018
9999999
Not Available
7
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
8
O-RING ENDCAP
1500003
9999999
Not Available
9
PISTON
1500011
9999999
Not Available
10
CAP RESERV.ASM (FOX)-ATV
1500099
9999999
Not Available
11
RING-RETAINING WIRE
1500097
$9,44 Unit Price incl. VAT
12
SCREW
1500019
9999999
Not Available
12
VALVE ASM;AIR
1500072
9999999
Not Available
12
O-RING DRUM OUTER
1500022
9999999
Not Available
13
O-RING (FOX)-ATV
1500098
9999999
Not Available
14
RESERVOIR-N/A 6.0 810-00-003
1500286
9999999
Not Available
15
BODY 1.46X9.05 204-04-036
1500283
9999999
Not Available
16
EYELET
1500013
9999999
Not Available
17
SLEEVE
1500102
9999999
Not Available
18
EYELET; BUSHING
1500103
$16,79 Unit Price incl. VAT
19
BUMPER R.COMPRESS. ATV
5410987
9999999
Not Available
20
SHAFT-.498X10.15 229-19-004
1500284
9999999
Not Available
21
CAP BODY P/B 804-00-026
1500282
9999999
Not Available
22
BEARING-1.46X1.15 812-02-002
1500285
9999999
Not Available
23
PLATE TOP OUT
1500017
9999999
Not Available
24
DAMPER; PISTON RING
1500002
9999999
Not Available
25
PLATE BACKUP
1500015
9999999
Not Available
26
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
27
O-RING BODY FOX .139W-1.234ID
1500004
9999999
Not Available
28
BUSHING 1.40
5020657
9999999
Not Available
29
BSG-EYELET
1500104
9999999
Not Available

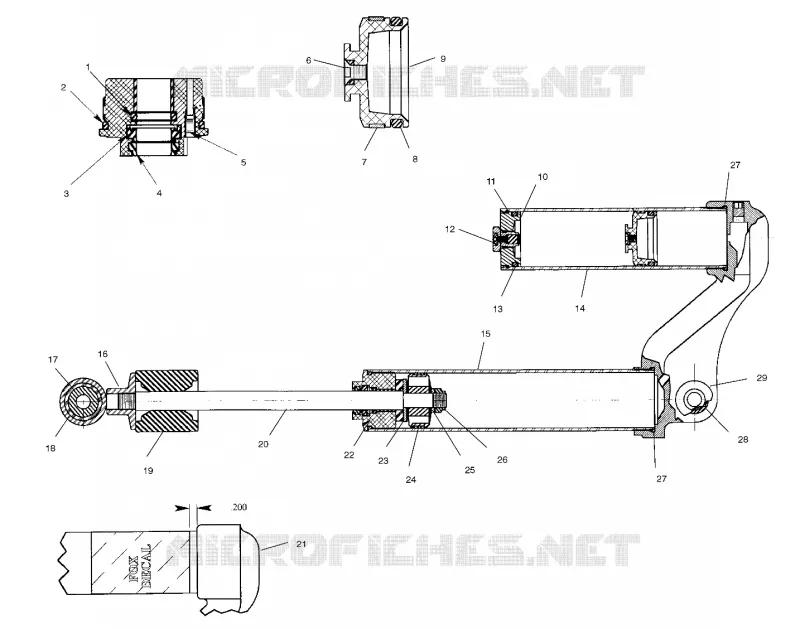

Find the detailed FOX SHOCK, GAS, RESERVOIR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
