Engine displacement
500
2
Year
2001
3
Trim
SCRAMBLER 500 4X4 - A01BG50AB
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CARBURETOR
by
OIL FILTER
CRANKSHAFT AND PISTON
1
CLIP
3085534
9999999
Not Available
2
SET PISTON STANDARD
3085866
9999999
Not Available
2
SET PISTON .020/.50MM O/S
3085868
9999999
Not Available
2
SET PISTON .010/.25MM O/S
3085867
9999999
Not Available
3
SET PISTON RING STANDARD
3085379
9999999
Not Available
3
SET PISTON RING .010/.25MM O/
3085380
9999999
Not Available
3
SET PISTON RING .020/.50MM O/
3085381
9999999
Not Available
4
BALL BEARING
3080676
9999999
Not Available
5
BALL BEARING
3085815
9999999
Not Available
6
CRANKSHAFT
3085812
9999999
Not Available
7
PIN; CRANK
3085341
9999999
Not Available
8
ROD CONNECTING
3085813
9999999
Not Available
9
BEARING LARGE END
3085400
9999999
Not Available
10
BALL; STEEL
3085024
9999999
Not Available
11
CRANKSHAFT 1
3085945
9990000
Not Available
11
ASM-CRANKSHAFT
3085861
9999999
Not Available
12
GEAR BALANCER #1
3085852
9999999
Not Available
13
SHAFT BALANCER
3086837
9999999
Not Available
14
SPACER 1.0
3084896
9999999
Not Available
14
SPACER 0.8
3084895
9999999
Not Available
14
SPACER 1.2
3084897
9999999
Not Available
15
SPACER 1.0
3084893
9999999
Not Available
15
SPACER 1.2
3084894
9999999
Not Available
15
SPACER; .6
3240088
9999999
Not Available
15
SPACER 0.8
3084892
9999999
Not Available
16
SPROCKET 1
3084882
9999999
Not Available
17
SLIT NUT
3085528
9999999
Not Available
18
WASHER
3083904
9999999
Not Available
19
LOCK NUT
3083905
9999999
Not Available
20
PIN DOWEL
3085346
9999999
Not Available
21
KEY
3081447
9999999
Not Available
22
KEY; WOODRUFF
3240168
9999999
Not Available

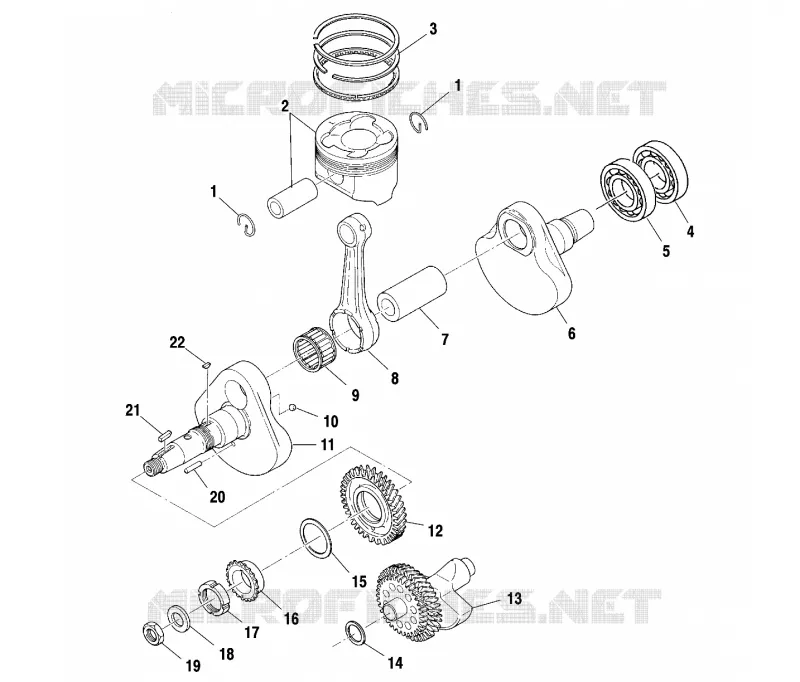

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
