BATTERY for POLARIS SPORTSMAN TOURING 570 EPS TRACTOR from 2019

BATTERY

1

TERMINAL BLOCK; 3 POST

4011892

$62,99 Unit Price incl. VAT

2

NUTS-10-32 KEPS

7547341

$1,56 Unit Price incl. VAT

3

CABLE-BATT 6GA RD BATT/SOL/TB

4014935

$104,99 Unit Price incl. VAT

4

INSUL.CABLE SOL.

5410346

9999999

Not Available

4

CABLE-BATT 6GA RD FLAT FLAT M6

4014424845

Not Available

5

STARTER SOLENOID

4012001

4081641

$59,84 Unit Price incl. VAT

6

SCREW

7512084

$2,09 Unit Price incl. VAT

7

K-BATTERY BOLT

2207682

$9,44 Unit Price incl. VAT

8

STRAP-GROUND

5260167

$26,24 Unit Price incl. VAT

9

CABLE-BATT 6GA BK BAT/START/TB

4014937

$60,89 Unit Price incl. VAT

10

BATTERY; 14AH; 190 CCA

4018695

Not Available

11

BATTERY HOLD DOWN STRAP

5412499

5418182

$9,44 Unit Price incl. VAT

12

BATTERY STRAP HOOK

7010032

9999999

Not Available

13

FOAM-COVER

5813265

9999999

Not Available

14

SCREW

7517386

$2,09 Unit Price incl. VAT

15

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

16

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

17

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

18

BRKT-FUSE BLOCK

5262951

5270030

$31,49 Unit Price incl. VAT

19

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

20

BATTERY GUARD BRACKET

5259571

$62,99 Unit Price incl. VAT

21

BATTERY-COVER

5453577

Not Available

22

BOLT

7512232

$2,09 Unit Price incl. VAT

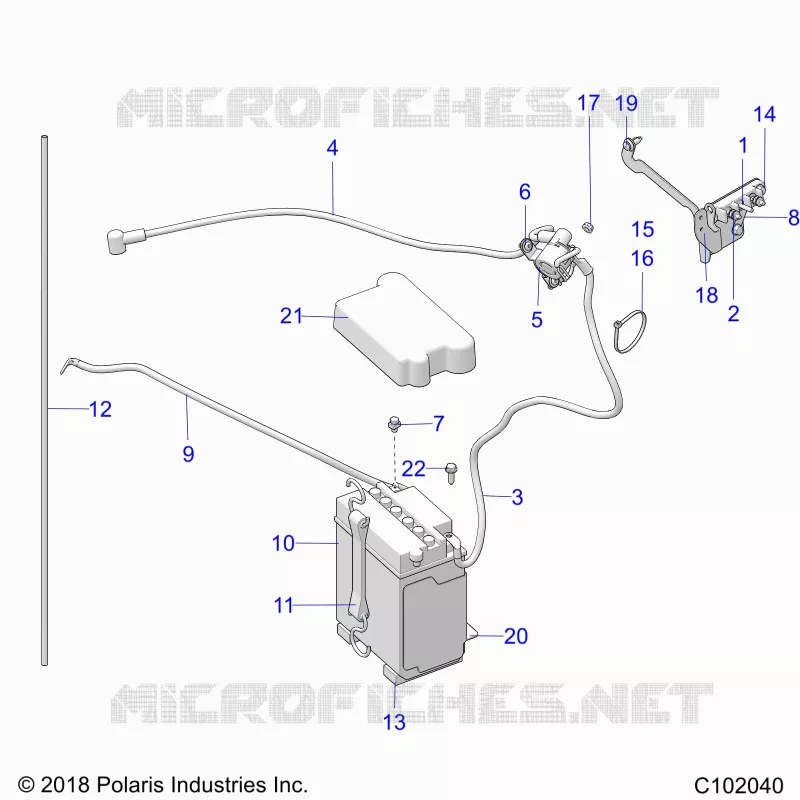

Find the detailed BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
