1
Engine displacement
600
2
Year
1996
3
Trim
600 XCR SP - 0965677
4
Parts Catalog
MAGNETO 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D002)
5
Parts Diagram
Parts Catalog
FUEL PUMP 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D001)
by
NOSEPAN 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206A008)
MAGNETO 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D002)
1
10
10
10
10
10
10
10
10
10
3
4
5
6
6
6
7
7
7
8
9
10
11
12
13
1
10
10
10
10
10
10
10
10
10
3
4
5
6
6
6
7
7
7
8
9
10
11
12
13
1
BOLT&WASHER ASM.
3083866
9999999
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
PLATE ASM. (Incl. 1-3 5 6 8-10)
3085289
Not Available
3
SCREW&WASHER ASM.
3085164
Not Available
4
FLYWHEEL ASM.
3085365
Not Available
5
CDI SYS.
3085301
9999999
Not Available
6
CAP; SPARK PLUG
3085294
9999999
Not Available
7
COIL IGNITION
3085293
9999999
Not Available
8
SCREW & WASHER ASM.
3084096
Not Available
9
BAND
3084099
9999999
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
CLAMP
3085163
9999999
Not Available
12
ASM. SCREW&WASHER(10)
3081260
9999999
Not Available
13
BAND
3084097
Not Available

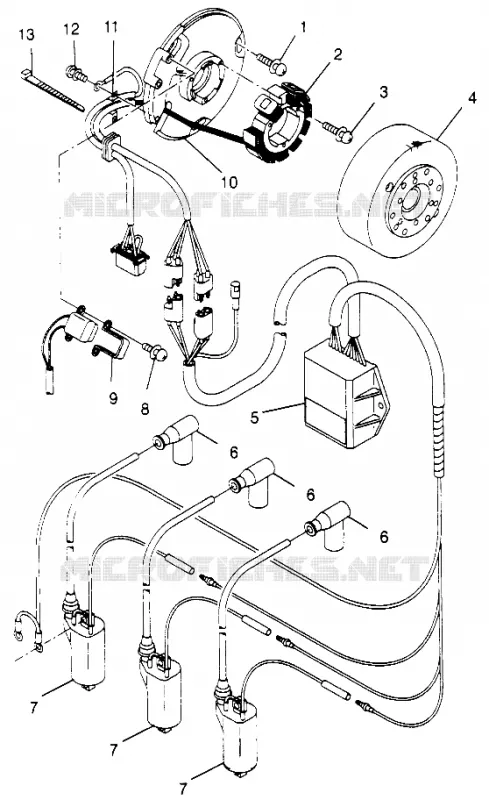

Find the detailed MAGNETO 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
