STARTER MOTOR for POLARIS 600 WIDETRAK IQ from 2015

STARTER MOTOR

1

MOTOR STARTER

4012729

4018147

$538,64 Unit Price incl. VAT

2

NARROW BAND CLAMP; 70-90 MM

7081279

$5,76 Unit Price incl. VAT

3

STARTER SHAFT

6230385

$257,24 Unit Price incl. VAT

4

PINION/PINION BRACKET ASSEMBLY

1204130

$146,46 Unit Price incl. VAT

5

SCR-M8X1.25X20 SHCS-Y/D;P-80

7519020

$6,29 Unit Price incl. VAT

6

SCREW

7516823

$5,76 Unit Price incl. VAT

7

SCREW

7517386

$2,09 Unit Price incl. VAT

8

BRKT-STARTER W/WELD PLATED

5256834

9999999

Not Available

9

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

10

SEAL FOAM

5810947

$8,39 Unit Price incl. VAT

11

EDGE TRIM; 6 FT; BLACK

5521131

9999999

Not Available

12

HEX NUT

7542105

$7,34 Unit Price incl. VAT

13

CABLE-RED SOL/STRTR DBLBOOT34

4010218

9999999

Not Available

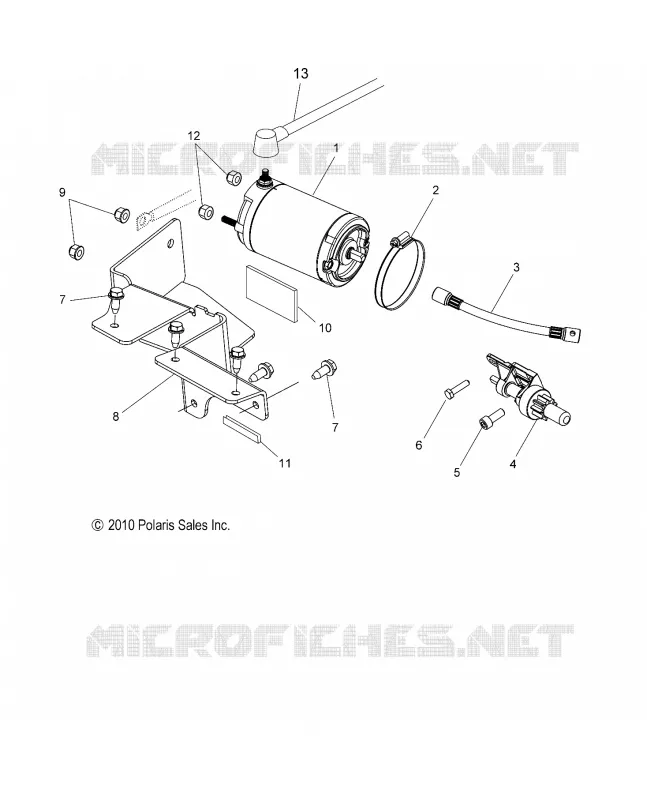

Find the detailed STARTER MOTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
