1
Engine displacement
570
2
Year
2023
3
Trim
SPORTSMAN 570 6X6
4
Parts Catalog
ENGINE, THROTTLE BODY AND FUEL RAIL
5
Parts Diagram
Parts Catalog
THERMOSTAT AND COVER
by
ENGINE, VALVE COVER
ENGINE, THROTTLE BODY AND FUEL RAIL
1
1
1
2
2
2
2
2
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
THROTTLE POSITION SENSOR ASSEMBLY
3131705
$367,49 Unit Price incl. VAT
1
THROTTLE BODY ASSEMBLY; ATV
1205009
$682,49 Unit Price incl. VAT
1
SCREW
3131628
$9,44 Unit Price incl. VAT
2
FUEL INJECTOR
2521068
$188,99 Unit Price incl. VAT
2
O-RING-BOSCH EV-14 UPPER
1500198
$20,25 Unit Price incl. VAT
2
O-RING GREEN
5415066
$20,99 Unit Price incl. VAT
3
1 CYLINDER FUEL RAIL
2521403
$206,63 Unit Price incl. VAT
4
THROTTLE BODY ADAPTER
5415524
5418149
Not Available
5
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
6
SCREW
7516734
$5,76 Unit Price incl. VAT
7
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
8
COVER-THROTTLE BODY
5259059
$12,59 Unit Price incl. VAT
9
TB HOUSING GASKET
5415104
$3,14 Unit Price incl. VAT
10
SCR-M4X0.7X8MM TX
7519292
$1,56 Unit Price incl. VAT
11
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
12
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
13
FUEL LINE-2.5 CENTIMETERS
8450003025
Not Available
14
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
15
BOLT(1)
7516603
$19,94 Unit Price incl. VAT

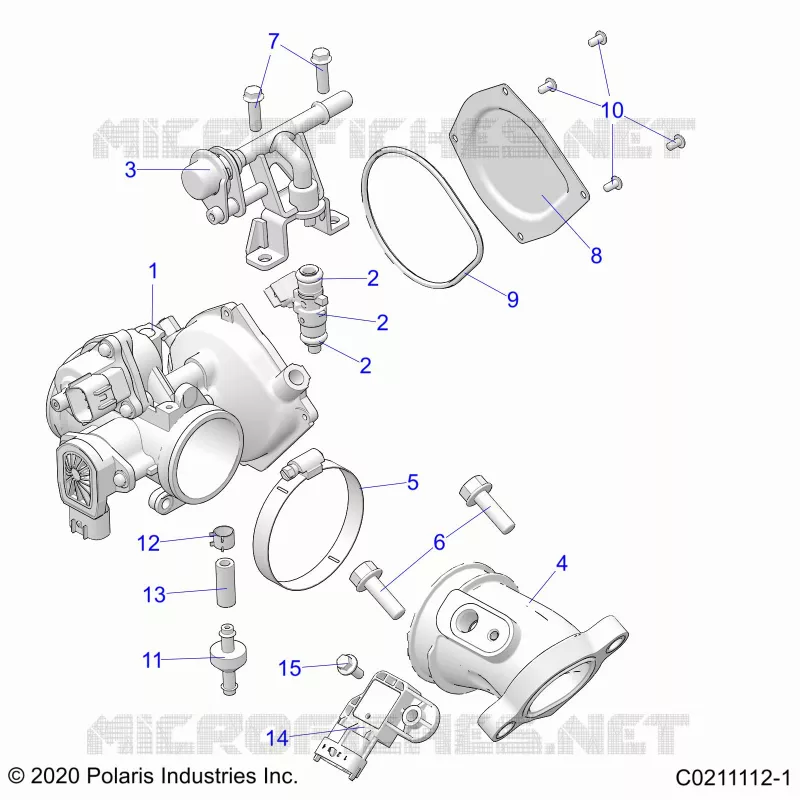

Find the detailed ENGINE, THROTTLE BODY AND FUEL RAIL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
